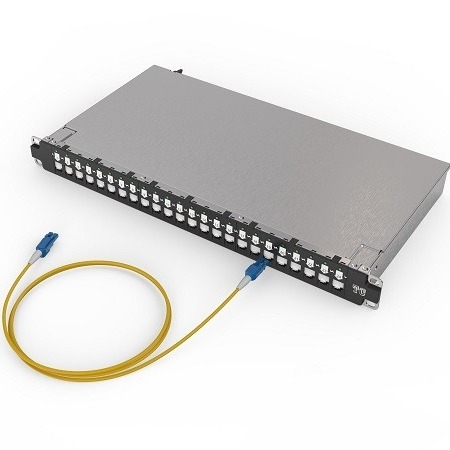

Fiber Optic Intelligent Patch Panel Intelligent Fiber Panel

Product Details

Place of Origin: China

Brand Name: TC

Model Number: FB-DZi-LC-1U-24-02A

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Carton

Get Best Price
Highlight:
Material:
Nickel-plated Cold-rolled Steel Plate
Dimensions:
19 Inches, 1U
Compatibility:
Designed With A Standard Keystone Structure For Modules
Material:
Nickel-plated Cold-rolled Steel Plate
Dimensions:
19 Inches, 1U
Compatibility:
Designed With A Standard Keystone Structure For Modules
Fiber Optic Intelligent Patch Panel Intelligent Fiber Panel

Fiber Optic Intelligent Patch Panel Intelligent Fiber Panel



Product Application
It is used in intelligent building cabling systems to centralize and manage wiring in various rooms. It works with fiber optic adapters and intelligent fiber optic patch cords, providing connectivity for horizontal and vertical cables (data, voice, etc.).
When used with an intelligent patch panel scanner, it can monitor real-time port connections for AIM intelligent infrastructure management. With standard 19-inch rack mounting support, it saves valuable rack space and ensures efficient installation, maintenance, and management of structured cabling systems.



Product Features
The traditional patch panel is integrated with an electronic detection system and LED indication system. It has a 14-core interface at the back, connecting to a scanner. The scanner receives instructions from management software and provides visual guidance to construction and maintenance personnel through LED lights for handling port jumpers. Real-time detection of port and jumper connections is possible, and anomalies trigger visual alarms via the LED system. This 1U high-density panel has 24 ports and supports various modes (single-mode, multi-mode) with convenient installation. The bottom box includes a fiber fusion tray for up to 48 fiber splices. The unique touch-sensitive dust door design enables single or dual pairing detection. Additionally, it supports RJ45 copper module installation and allows for mixed use of fiber and copper connections.



Application Standards


GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2 etc



  Product Parameters Intelligent Fiber Optic Patch Cord
Single Mode Product Length L ≤ 3m L > 3m
Polishing Method LC PC 0° LC PC 0°
Test Method Method B Method B
Insertion Loss IL (Typical Value) ≤ 0.10dB ——
Insertion Loss IL (Maximum Value) ≤ 0.25dB ≤ 0.25+0.0004×L dB
Return Loss RL (Minimum Value) ≥ 45dB ≥ 45dB
Multimode Product Length L ≤ 3m L > 3m
Polishing Method LC PC 0° LC PC 0°
Test Method Method B Method B
Insertion Loss IL (Typical Value) ≤ 0.10dB ——
Insertion Loss IL (Maximum Value) ≤ 0.25dB ≤ 0.25+0.0035×L dB
Return Loss RL (Minimum Value) ≥ 35dB ≥ 35dB
