Product Details
Place of Origin: China
Brand Name: TC
Payment & Shipping Terms
Jacket Material: |
PVC/LSZH |
Connector: |
MPO/MTP |
Connector Type: |
Male/female |
Backbone Cable: |
OS2, OM3, OM4 And OM5 |
Core Number: |
24 |
Outer Diameter: |
4.5mm/5.0mm |
Polarity: |
A/B |
Standards Met: |
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2 |
MPO Grinding Type: |
UPC/APC |
Jacket Material: |
PVC/LSZH |
Connector: |
MPO/MTP |
Connector Type: |
Male/female |
Backbone Cable: |
OS2, OM3, OM4 And OM5 |
Core Number: |
24 |
Outer Diameter: |
4.5mm/5.0mm |
Polarity: |
A/B |
Standards Met: |
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2 |
MPO Grinding Type: |
UPC/APC |

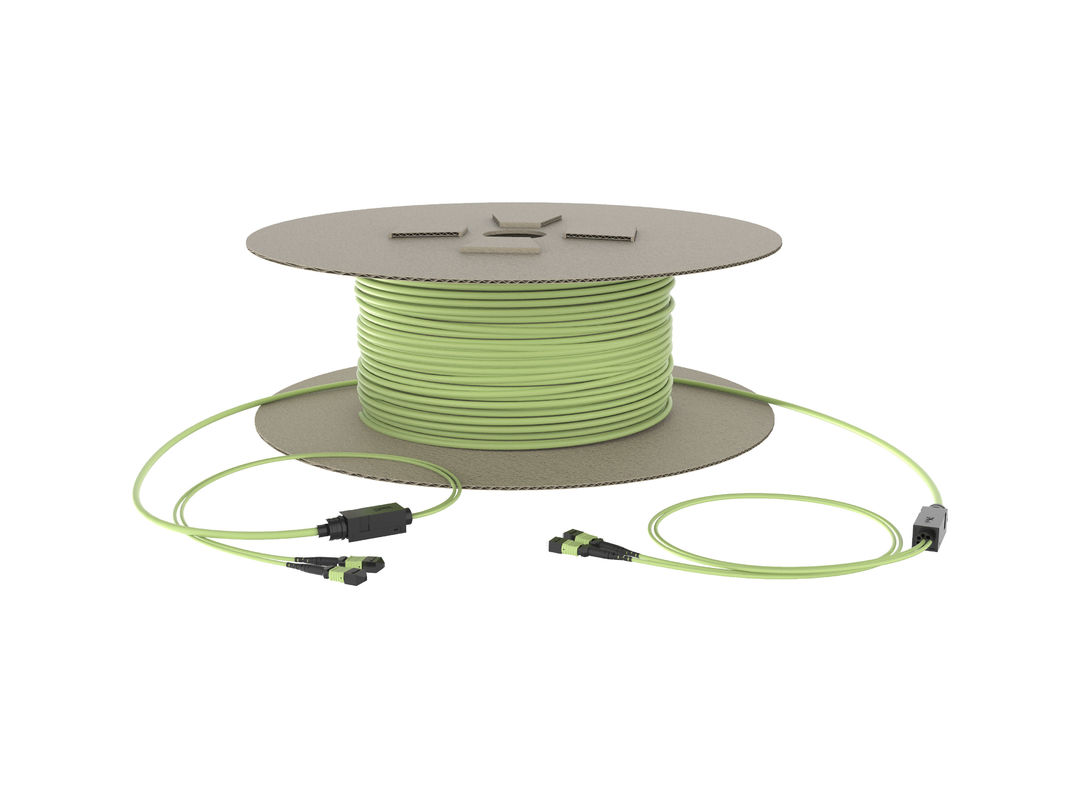

MPO-MPO Trunk Cable, 24 core MPO/MTP cable, MPO-MPO Fiber Optic Cable Application
Pre-terminated Fiber Optic Cables provide fast deployment for horizontal and backbone fiber optic cables in equipment rooms of smart building cabling system as well as all data centers.
Standardized components, de-engineered, ensure data center production in factories and realize the overall delivery to customers. Customers can quickly acquire products as needed and expand capacity according to businesses.
Product Features
Pre-terminated Fiber Optic Cables adopt high-grade low-loss MPO/MTP and LC connectors and have a 100% pass guarantee on the polishing process, exceeding all parameters specified in IEC 61754, IEC 61755 standards.
OS2, OM3, OM4 and OM5 backbone cables can all be provided. The branch splitter has been patented to protect fiber fan-outs and delivers optimal tensile strength so that fiber counts are up to 192.
Tailored services are provided, such as fiber length, branch types as well as various types of connector plugs, namely, MPO/MTP, LC, SC, E2000, and MU.
Matched with Magic series patch panel and allied with pre-term cassettes, this product offers users the latest 10G-800G integrated solutions.
Application Standards
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2
Technical Details
| Specifications | OM3/OM4 | OM5 | G.657.A2 PC | G.657.A2 APC | |
| MPO Connector |
Connector Type, Grinding Type |
Low loss, PC 0˚ | Low loss, PC 0˚ | - | Low loss, APC 8˚ |
| Insertion Loss IL (Typical) | ≤0.15dB | ≤0.15dB | - | ≤0.18dB | |
| Insertion Loss IL (Max.) | ≤0.30dB | ≤0.30dB | - | ≤0.30dB | |
| Return Loss RL (Typical) | ≥35dB | ≥35dB | - | ≥70dB | |
| Return Loss RL (Min.) | ≥30dB | ≥30dB | - | ≥65dB | |
| Connectivity Method | A, B, C | A, B, C | - | A, B, C | |
| Color Code | Aqua /Violet | Lime green | - | Green |
