Product Details
Place of Origin: China
Brand Name: TC
Certification: GB7251.1-2013；IEC61439-1；YD/T585-2010
Model Number: TC-
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, MoneyGram
Input Wiring: |
3 Phase+N+PE |
Input Voltage: |
380Vac |
Input Frequency: |
50/60Hz |
Functionality: |
Supports Single Bus, Double Bus, And Multiple Bus Schemes |
Input Power Factor: |
0.99 |
Protection Level: |
IP20 |
Operating Temperature: |
-10~+40℃ |
Operating Humidity: |
0~95%RH |
Dimensions (mm): |
W600*D1200*H2000 (customizable To Other Sizes) |
Compliance Standards: |
GB7251.1-2013；IEC61439-1；YD/T585-2010 |
Input Wiring: |
3 Phase+N+PE |
Input Voltage: |
380Vac |
Input Frequency: |
50/60Hz |
Functionality: |
Supports Single Bus, Double Bus, And Multiple Bus Schemes |
Input Power Factor: |
0.99 |
Protection Level: |
IP20 |
Operating Temperature: |
-10~+40℃ |
Operating Humidity: |
0~95%RH |
Dimensions (mm): |
W600*D1200*H2000 (customizable To Other Sizes) |
Compliance Standards: |
GB7251.1-2013；IEC61439-1；YD/T585-2010 |

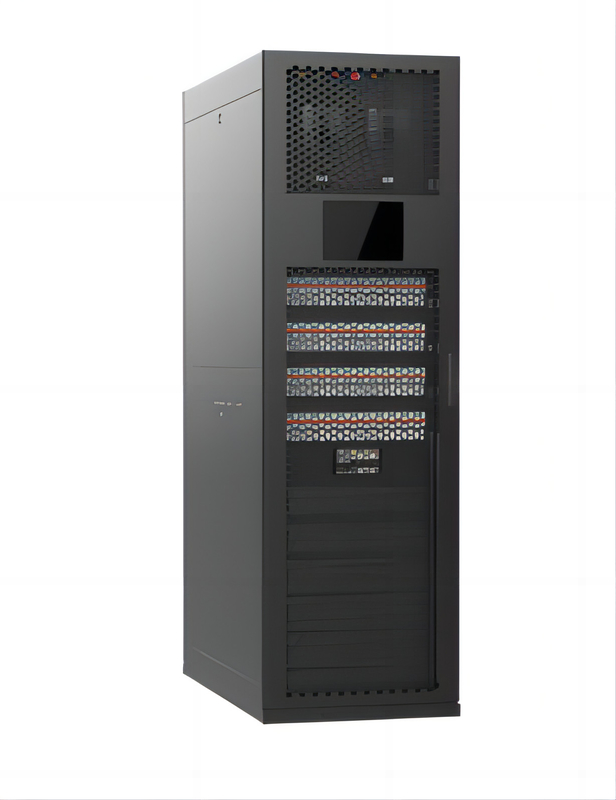

Precision UPS Data Center Power Distribution System 60KVA/90KVA/120KVA
| Project | 60KVA | 90KVA | 120KVA |
| Input Wiring | 3 phase+N+PE | ||
| Input Voltage | 380Vac | ||
| Input Frequency | 50/60Hz | ||
| Functionality | Supports single bus, double bus, and multiple bus schemes | ||
| Input Power Factor | 0.99 | ||
| Output Power Factor | 1 | ||
| Inverter Overload Capacity | 110% transfer to bypass after 1 hour; 125% transfer to bypass after 10 minutes; 150% transfer to bypass after 1 minute; > 150% transfer to bypass after 200 ms |
||
| Bypass Input Voltage | 380/400/415Vac | ||
| Bypass Voltage Range | Default: -20% to +15%; Optional: -40% to +25% | ||
| Display Screen | 7-inch/10-inch touch display screen | ||
| Alarm Method | Audio and visual alarms, communication protocol alarms | ||
| Monitoring Protocol | ModBus protocol, TCP/IP | ||
| Communication Interface | Standard RS485, RS232, optional LAN port | ||
| Main Circuit Monitoring Parameters | Voltage, current, frequency, zero-sequence current, power factor, active power, reactive power, apparent power, active energy, reactive energy | ||
| Main Circuit Alarm Items | |||
| Main Circuit Alarm Items | Overvoltage, undervoltage, loss of voltage, phase loss, overload, overcurrent, switch status, etc. | ||
| Branch Circuit Monitoring Parameters | Voltage, current, active power, reactive power, apparent power, power factor, active energy, reactive energy, load percentage | ||
| Measurement Accuracy | Current: Accuracy 0.5%, range: 1%-120%; Voltage: Accuracy 0.5%, range: 5%-120%; | ||
| Dry Contacts | |||
| Branch Circuit Alarm Items | Overload, overcurrent, over/undervoltage, switch status, over-temperature | ||
| DI/DO (Digital Input/Digital Output) | |||
| Grounding/Form of Grounding | Separate ground bar/neutral bar | ||
| Input-Output Method | Rear top/bottom incoming line | ||
| Protection Level | IP20 | ||
| Operating Temperature | -10~+40℃ | ||
| Operating Humidity | 0~95%RH | ||
| Dimensions (mm) | W600*D1200*H2000 (customizable to other sizes) | ||
| Packaging Method | Wooden case packaging | ||
| Gross Weight (kg) | 314 | 358 | 432 |
| Compliance Standards | GB7251.1-2013；IEC61439-1；YD/T585-2010 | ||
Our Network Rack Cabinet product comes with comprehensive technical support and services to ensure smooth installation and operation. Our team of experts provides guidance and assistance for installation, configuration, and maintenance of our products.
We offer training and certification programs to help you become proficient in using our products and optimizing their performance. Our support services include online resources such as FAQs, product documentation, and troubleshooting guides to assist you in resolving any issues you may encounter.
In addition, we offer warranty and repair services to ensure that your products are functioning as intended. Our technical support and services are available to our customers 24/7, ensuring that you have access to assistance whenever you need it.
Product Packaging:
Shipping:
A: The brand name of this structured cabling accessory is TC.
2. Q: What is the model number of this product?A: The model number of this product is TC-.
3. Q: Where is this product manufactured?A: This product is manufactured in China.
4. Q: What is the minimum order quantity for this product?A: The minimum order quantity for this product is negotiable.
5. Q: What are the payment terms accepted for this product?A: The payment terms accepted for this product are L/C, T/T, Western Union, and MoneyGram.
6. Q: What certifications does this product have?A: This product is certified with GB7251.1-2013；IEC61439-1；YD/T585-2010.
7. Q: What is the packaging detail for this product?A: The packaging detail for this product is carton.
8. Q: Is the price of this product negotiable?A: Yes, the price of this product is negotiable.
