Product Details
Place of Origin: China
Brand Name: TC
Certification: CE, ISO 9001
Model Number: PDU19-11-CH40D2-I1YB2
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Payment Terms: L/C, T/T, Western Union, MoneyGram
Dimensions: |
1791*56*45 Mm |
Profile: |
Aluminum/Sheet Metal |
Shell Color: |
Black |
Mounting: |
Tool Free Installation Or Universal Installation Accessories |
Plastic Materials: |
PC/ABS Flame Retardant V0, Glow Wire Resistant 850°C |
Maximum Elevation: |
0-3,000m |
Temperature (operating / Storage): |
-5-60°C/-15-85℃ |
Relative Humidity: |
5-95% RH. Non Condensing |
Dimensions: |
1791*56*45 Mm |
Profile: |
Aluminum/Sheet Metal |
Shell Color: |
Black |
Mounting: |
Tool Free Installation Or Universal Installation Accessories |
Plastic Materials: |
PC/ABS Flame Retardant V0, Glow Wire Resistant 850°C |
Maximum Elevation: |
0-3,000m |
Temperature (operating / Storage): |
-5-60°C/-15-85℃ |
Relative Humidity: |
5-95% RH. Non Condensing |

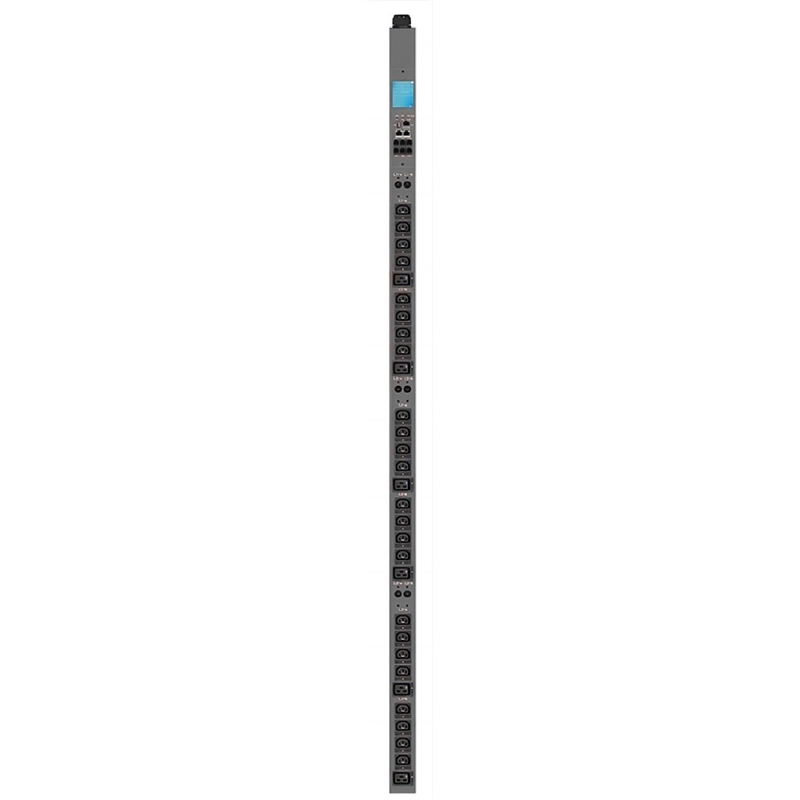

All functions of PDU are designed and produced according to modular structure
PDU design has a variety of world standard power socket modules, can meet the different needs of customers around the world
The PDU design has a variety of styles of installation and fixing structural components, which can be easily and firmly installed and fixed in the horizontal or vertical manner in multiple directions
PDU design has a variety of control function modules, power switches, circuit breakers, indicators, etc., there are overall system control, multiple control, unit independent control or special beads specified control and other control modes
Features
| Electrical measurement | current (A); active power(kW); voltage(V); frequency (Hz); power factor; apparent power (VA); reactive power (var); energy (kWh) |
| Metering per PDU | Yes |
| Metering per phase | No |
| Metering per group | No |
| Metering per outlet | No |
| Metering accuracy | +/- 1% billing grade |
| Outlet switching | No (Remark: only in each socket control case) |
| Trip State Monitoring | No (Remark: only in CB monitoring case) |
| Sensors |
Can connect two Temperature & Humidity sensors. |
| Display | LCD Display (Display current, voltage, power, KWh, IP address, etc). Measurement results for each socket can be displayed on the screen. |
| Cascade | 2 RS485 ports (Modbus protocol, up to 20 devices can be cascaded) |
| Network | 10/100 Mbit/s Auto-sensing |
| Login mode | Web, Telnet Login through username and password, with 5 different permission management groups |
| Supported network protocols |
IPv4, DHCP, DNS, HTTP, HTTPS, SSH, SSH2, SNMP V1, V2, V3 |
| USB Port | USB 2.0 host port (support to connect an external WIFI module) |
| API | Open API (Can transmit electrical information, threshold alarm setting information, temperature and humidity alarm information, etc) |
| Alarm settings | Yes (Current, voltage, power, temperature and humidity upper and lower threshold settings for external sensor alarm) |
| Alarm mode | Email, sound and light, screen flashing alarm |
| Information storage | Yes (The storage time for data such as current, voltage, power, and kwh is about 3 months) |
| Log list | Yes |
| BMI | Yes |
Input
| Input plug |
IEC 60309 32A |
| Input cable | 3G6.0 mm² VDE*3M+32A industrial plug |
| Rated current | 32 A |
| Rated voltage | 250VAC |
| Phases |
Single phase |
| Frequency | 50 /60 Hz |
Output
| Outlets |
40 ways IEC 60320 (20 ways C13+20 ways C13/C19 universal) 2 ways C19 |
| Circuit Breakers | 2pcs (16A) electromagnetic hydraulic switch (with anti-misoperation) |
Physical
| Dimensions (L*W*H) |
1791*56*45 mm |
| Profile | Aluminum/Sheet metal |
| Shell color | Black |
| Mounting | Tool free installation or universal installation accessories |
| Plastic Materials | PC/ABS Flame retardant V0, Glow wire resistant 850°C |
Environmental
| Maximum elevation | 0-3,000m |
| Temperature (operating / storage) | -5-60°C/-15-85℃ |
| Relative humidity | 5-95% RH. Non condensing |
Compliance
| Certification | CE, ISO 9001 |
