Magic Series HD96 Fiber Optic Cassette Magic Fiber Patch Panel Cassette

Product Details

Place of Origin: China

Brand Name: TC

Model Number: FB-11-PB-6-2*MPO/F-LC-240M3-A

Payment & Shipping Terms

Minimum Order Quantity: 20pcs

Price: Negotiable

Packaging Details: Seaworthy Packing

Payment Terms: Western Union, T/T, L/C, MoneyGram

Get Best Price
Highlight:

HD96 Fiber Optic Cassettes

,

Fiber Patch Panel Cassettes

,

high density cassettes

Housing Material:
Plastic
Housing Color:
Aqua
Front Interface:
LC
Fiber Mode:
Multi Mode
Fiber Type:
OM3
Connecting Type:
Pre-connected
Polarity:
A
MPO Type:
Female
Standard:
ISO/IEC 11801, TIA/EIA568-C.2
Density:
96 Fiber (LC)
Housing Material:
Plastic
Housing Color:
Aqua
Front Interface:
LC
Fiber Mode:
Multi Mode
Fiber Type:
OM3
Connecting Type:
Pre-connected
Polarity:
A
MPO Type:
Female
Standard:
ISO/IEC 11801, TIA/EIA568-C.2
Density:
96 Fiber (LC)

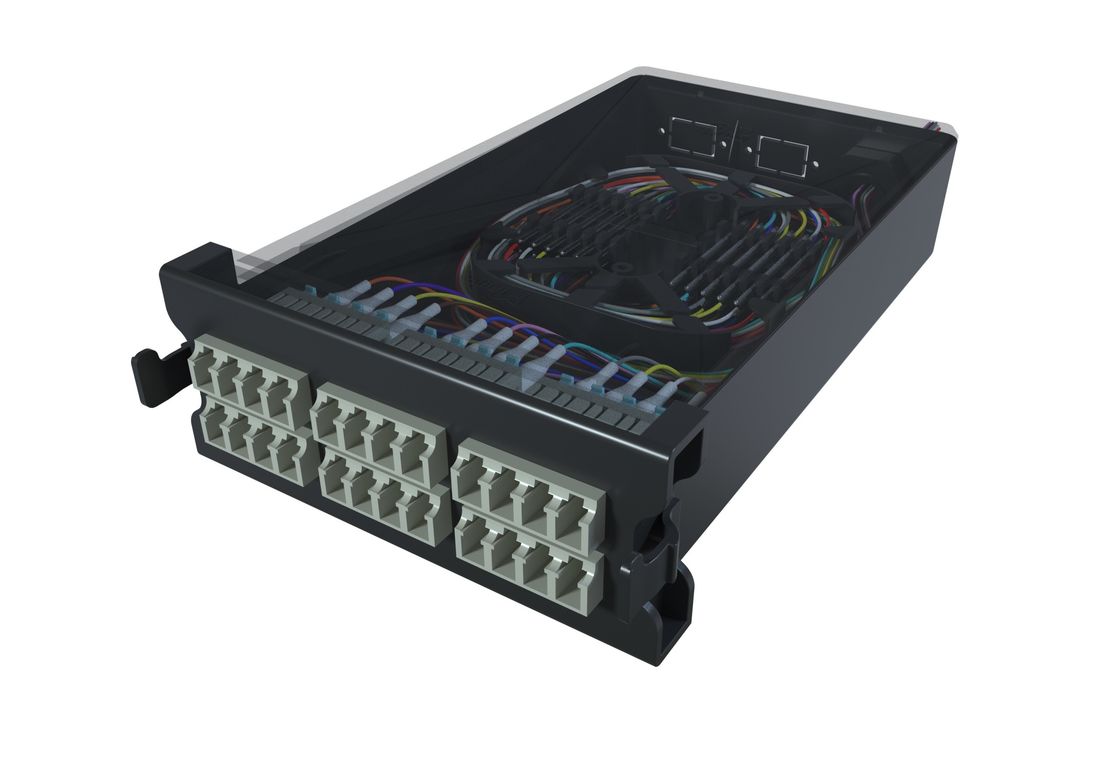

Magic Series HD96 Fiber Optic Cassette Magic Fiber Patch Panel Cassette

Magic Series HD96 Fiber Optic Cassette Magic Fiber Patch Panel Cassette


HD96 Fiber Optic Cassette provides a centered cable distribution to management rooms, equipment rooms and data center information points in smart building structured cabling system. It exceeds all parameters specified in IEC 61754, IEC 61755 standards.



The cassette can be installed in Magic series Modular Patch Panels, used in combination with fiber optic splicing, MPO/MTP pre-term fiber optic cables and fiber optic patch cords, and provide high performance, high density inlets and outlets for fiber optic information points.



There are both splicing and pre-terminated types. The former supports 24 splices, while the latter provides a variety of models, such as MPO/MTP to SC, LCD, MPO/MTP, and OS2, OM3, OM4, OM5. With LC adapter in use, it can house 96 fibers within 1U, which realizes optimal space utilization and provides a strong guarantee for structured cabling installation, maintenance and management.




TC Fiber Optic Cassette Features



  • Plastics gives the main housing good mechanical property. Modular design offers both splicing and pre-terminated types.
  • With SCD/LCQ adapters in front (in combination with 1.6mm ultra thin patch cords from TC) and M16 cable gland (4-8mm diameter ) in rear, each splice cassette holds up to 24 splices and is equipped with a micro splice tray as well as bend radius protection. It is suggested that G.657.A1 singlemode pigtails should be used to reduce macro bending losses of singlemode fibers.
  • Pre-terminated type has two MPO/MTP-LC fan-outs built-in with low losses. 100% original, it exceeds all parameters specified in IEC 61754, IEC 61755 and other international standards.
  • It is compatible with Type A and Type B wiring as well as exclusive Type T wiring (the same wiring on both terminals) by TC. High density that 96 fibers within 1U, together with pretermination ensures high space utilization and quick deployment in data center.





Application Standards


GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2





Technical Details



  Specifications OM3/OM4 0M5 G.657.A2 LC-PC G.657.A2 LC-APC
Capacity 24 core 24 core 24 core 24 core
Rear Connector 2 x MPO/MTP female 2 x MPO/MTP female 2 x MPO/MTP female 2 x MPO/MTP female
Connector Type,
Grinding Type
Low loss, PC 0˚ Low loss, PC 0˚ Low loss, APC 8˚ Low loss, APC 8˚
Insertion Loss IL (Typical) ≤ 0.15dB ≤ 0.15dB ≤ 0.18dB ≤ 0.18dB
Insertion Loss IL (Max.) ≤ 0.30dB ≤ 0.30dB ≤ 0.30dB ≤ 0.30dB
Return Loss RL (Typical) ≥ 35dB ≥ 35dB ≥ 70dB ≥ 70dB
Return Loss RL (Min.) ≥ 30dB ≥ 30dB ≥ 65dB ≥ 65dB
Connectivity Method A, B, T A, B, T A, B, T A, B, T
Color Code Aqua, Violet Lime green Black Black
Front Connector
Grinding Type
24 x LC PC 0˚ 24 x LC PC 0˚ 24 x LC PC 0˚ 24 x LC APC 8˚
Fiber Stub ZrO2 ZrO2 ZrO2 ZrO2
Insertion Loss IL (Typical) ≤ 0.10dB ≤ 0.10dB ≤ 0.10dB ≤ 0.10dB
Insertion Loss IL (Max.) ≤ 0.25dB ≤ 0.25dB ≤ 0.25dB ≤ 0.25dB
Return Loss RL (Typical) ≥ 40dB ≥ 40dB ≥ 50dB ≥ 75dB
Return Loss RL (Min.) ≥ 35dB ≥ 35dB ≥ 45dB ≥ 65dB
Tube ZrO2 ZrO2 ZrO2 ZrO2
Color Code Aqua, Violet Lime green Blue Green
Jacket Material PEI PEI PEI PEI
Dust Cover (duplex) White or Transparent White or Transparent White or Transparent White or Transparent
  Color Code of Fan-Out
Fibers
IEC 60304 IEC 60304 IEC 60304 IEC 60304
Quantity of Fan-Outs 2 x 12 core 2 x 12 core 2 x 12 core 2 x 12 core
