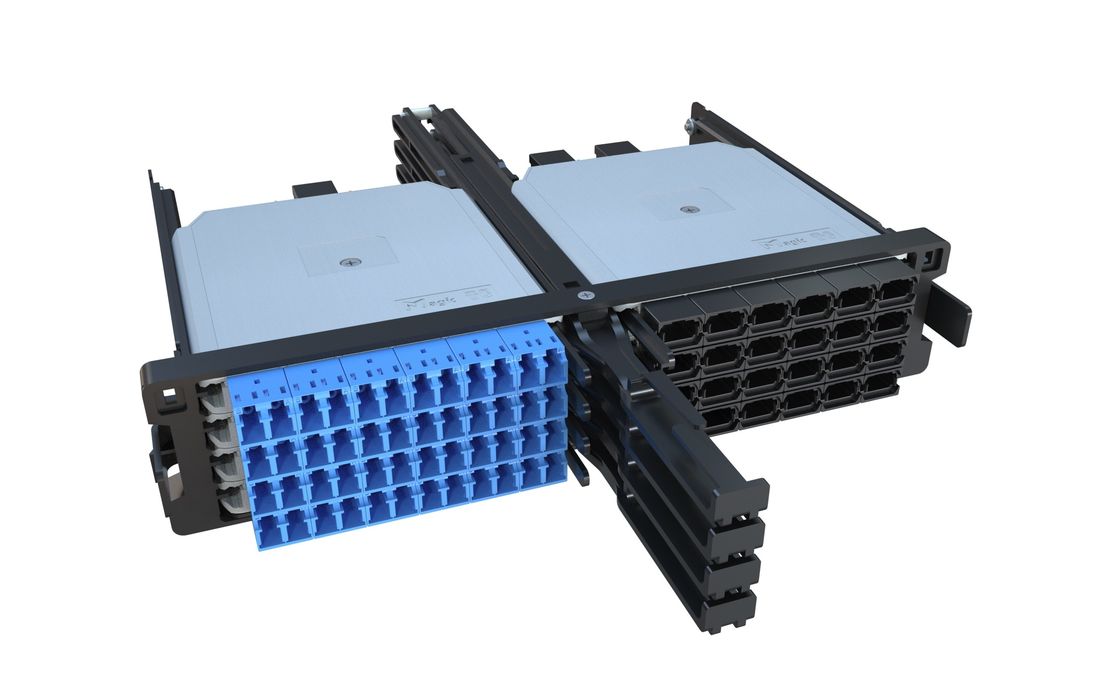

Magic Series UHD 192 Fiber Optic Cassette Ultra High Density MPO Cassette

Magic Series UHD 192 Fiber Optic Cassette Ultra High Density MPO Cassette

Fiber Optic Cassette Module provides a centered cable distribution to equipment rooms and data center fiber optic information points in smart building structured cabling system.

It exceeds all parameters specified in IEC 61754, IEC 61755 standards. The cassette module can be installed in Magic series Modular Patch Panels, used in combination with MPO/MTP pre-term optic fiber cables and fiber optic patch cords, and provide high performance, high density inlets and outlets for fiber optic information points.

It has MPO/MTP to SC, LCD, MPO/ MTP available. With LC adapter in use, it can house 192 fibers within 1U, twice what HD96 can accommodate, which realizes optimal space utilization and provides a strong guarantee for structured cabling installation, maintenance and management.

Product Features

• Magic series Modular Patch Panel can have two UHD 192 fiber cassette modules installed, and each has at most 8 pre-term cassettes. Patent tray-free design and integrated design for adapter plugs greatly reduce gaps between the units, ensure 192 fibers in 1U, and keep all the advantages of 144-fiber layered drawing. For better working environment, 1.8mm ultra thin Uniboot patch cords are recommended.
• Behind the unit is the patent MPO/MTP plug/unplug assembly, and its MPO/MTP connector can be detached from the front for easier and faster removal of each modular unit.
• MPO/MTP-LC cassette has one MPO/MTP low loss fan-out cable inside, 100% original. It is compatible with Type A and Type B wiring as well as exclusive Type T wiring (the same wiring on both terminals) by TC. MPO/MTP-MPO/MTP cassette can install several low loss fan-out cables based on user's demand. It is an optimal choice for the transition from 40G to 400G.
• Extra cable management ring attached to the pull rod, allied with 0U cabling assembly of Magic Modular Patch Panel, gives a perfect solution for patch cord organization. Its barrier to vertical cold wind decreases to the lowest level so as to encourage energy efficiency in data center.

Application Standards

GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2

Technical Details
