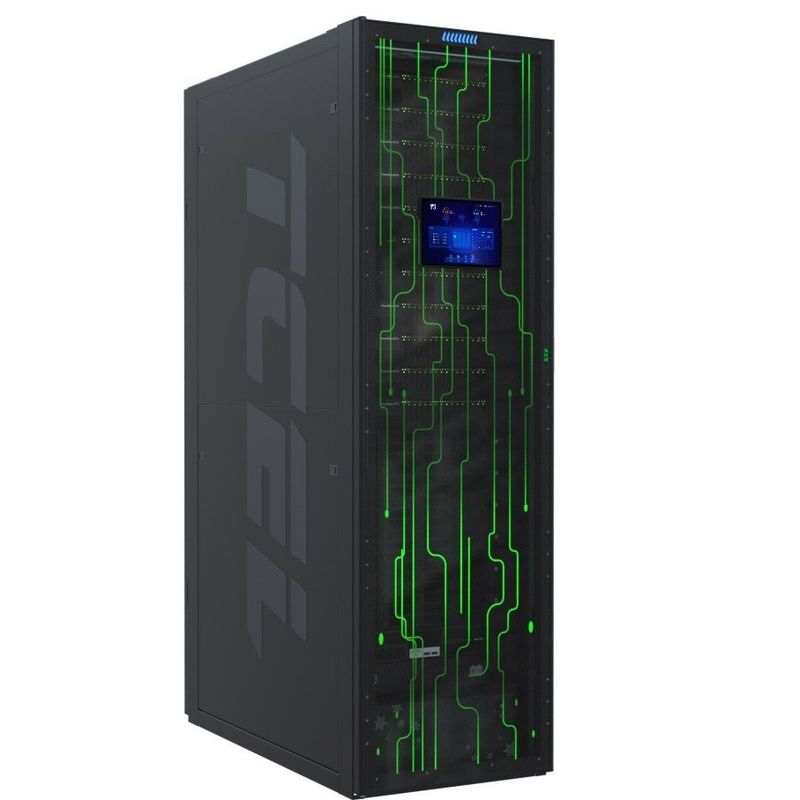

Modular Data Center 34U Micro Mini Data Center IP5X Prefabricated

Modular Data Center Application

Micro and Mini Data Centers are designed for equipment rooms, small- and medium size data centers, edge data centers (such as education, government institutions, bank outlets, gas stations, high-speed toll booths, smart communities, 5G base stations, Internet e-commerce and so on).

Standardized components and de-engineering ensure data center production in factories and realize the overall delivery to customers. Customers can quickly acquire products as needed and expand capacity according to businesses.

TC Modular Data Center Features


• Highly integrated, the cabinet serves as a server room in which it boasts all facilities a standard large scale data center needs, such as UPS, air conditioner system, smart power distribution system, environment monitoring system, and access control system.
• Modular design makes it easier to install and maintain. Standard ports, prefabrication inspection, field deployment and maintenance ensure a shorter online time. Investment in infrastructure construction has been decreased due to high protection rating, low noise and easy-to-deploy under harsh environment conditions.
• Thanks to high efficient green energy reduction, dual conversion online UPS, DC frequency conversion technology, smart power distribution as well as supervision and control system, the cabinet guarantees the uptime availability and stability. The PUE (Power Usage Effectiveness) rating drops to 1.3. There is no need for either single cabinet or single-row multiple cabinets to build up a hot and cold aisle in between, resulting in a smaller coverage area (2 square meters for single cabinet).
• Single cabinet has a capacity of 3-20KW, 15mins-4hrs (customized if necessary) for its UPS run time.
• Patent overhead power distribution unit and environment monitoring unit only cover a very small area. When refrigerating capacity of the integrated air conditioner reaches 4.2kw, its available inner space is up to 34U.
• The front door can be customized for diverse colors and patterns as well as different light alarms according to working conditions. PAD is magnetically mounted, easy to get and charge.
• Air conditioner can be arranged in rack-mounted way or in a sophisticated column order so as to meet different installation requirements and provide users with a comprehensive solution and best quality services.


Application Standards

GB/T 18233 (ISO/IEC 11801); GB 50311; GB50174; TIA/EIA568-C.


Technical Details
