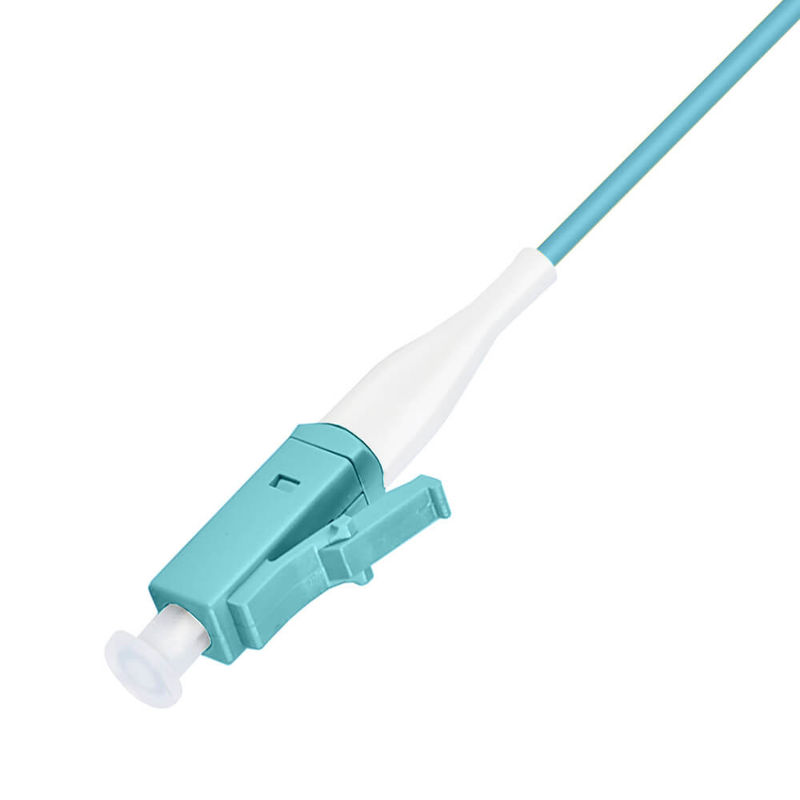

Pigtail Multimode OM3 LC Adaptor Fiber Pigtail Aqua

Product Details

Place of Origin: China

Brand Name: TC

Model Number: FF-LC-A1a-OM3-1M

Payment & Shipping Terms

Get Best Price

A1a lc pigtail multimode


TC PVC lc pigtail multimode


FC A1a lc apc pigtail

Adaptor Type:
Fiber Type:
Multimode, OM3
Jacket Material:
Operating Temperature:
-25~70 ℃
IEC 60332-3C, IEC 60754-2, IEC 61034-2
Adaptor Type:
Fiber Type:
Multimode, OM3
Jacket Material:
Operating Temperature:
-25~70 ℃
IEC 60332-3C, IEC 60754-2, IEC 61034-2
Pigtail Multimode OM3 LC Adaptor Fiber Pigtail Aqua

Basic Information


Model NO.
Multi-mode Fiber
Connection Structure
Material Shape
Round Wire
Allowed Lateral Pressure
Allowed Tensile Strength
Single Core
Sheath Material
Connector Type
Polish Type
Fiber Type
Multi Mode(50/125/Om3)
Cable Diameter
Jacket Color
Insertion Loss
Return Loss(Rl)
Connector Durability
500 Cycles
Jacket Material
Transport Package
Carton Box











Product Description

  • 100% optically tested in the factory.
  • Saves time and prevents incorrect patching with color-coded pigtails
  • The protective outer jacket is removable, for tighter bend radius requirements or high density installations
  • Low Back Reflection and Insertion Loss
  • Perfect for use in Data Centers, premise installations, LAN, WAN, Telecommunication and Data Processing Networks
  • Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. Fiber optic pigtails are a tight buffered fiber cable with a connector pre-terminated on one end and exposed fiber on the other. The end is stripped and can be fusion spliced to a single or multi-fiber trunk. When utilized properly, the fiber optic pigtail allows light signal transmission with minimal return loss and low attenuation.



Product Highlights

1)It can be quickly configured and set up to reduce site installation time
2)The fire retardant and flame retardant conform to IEC 60332-3C standard
3)The emission of non corrosive gas conforms to IEC 60754-2 standard
4)Friendly-environmental PVC material meets TIA/EIA 568A requirements.
5)The insertion loss is less than 0.3dB
6)The return loss is more than 50dB


Product Structure

Connector type:LC
Polish Type: UPC
Fiber Type: Multi Mode(50/125/OM3)
Cable Diameter:0.9mm
Jacket Color:Aqua
Insertion Loss:0.3dB
Return Loss(RL):50dB
Connector Durability: 500 cycle
Jacket Material: PVC


Important Note

® OEM and ODM orders are acceptable. Any kind of logo printing or design are optional.
® Provide the best solutions to customers
® Our cables & assemblies quality and service are ensured by our business philosophy of responsibility.
® Professional engineers and advanced equipment guarantee our products of high quality,
® 100% inspection before shipment.
® Gold supplier authenticated by Global Sources. Safe and easy to buy from us.



Retention Strength(N) Short Term 6N
Long Term 3N
Crush Resistance(N/100mm) Short Term 500N
Long Term 100N
Bending Radius(mm) Dynamic 20D
Static 10D
Installation Temperature(ºC) -5~50
Operation Temperature(ºC) -20~60
Transport & Storage Temperature(ºC) -25~70
