Home > products > Fiber Optic Pigtail > Fiber Optic Pigtail Multimode OM4 FC Adaptor

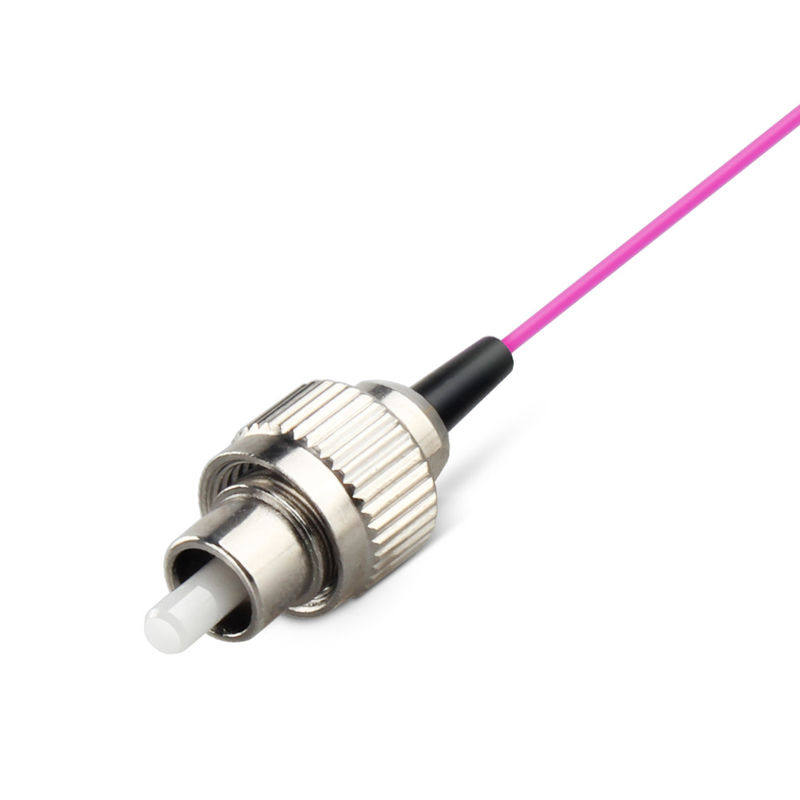

Fiber Optic Pigtail Multimode OM4 FC Adaptor

Product Details

Place of Origin: China

Brand Name: TC

Model Number: FF-FC-A1a-OM4-1M

Payment & Shipping Terms

Get Best Price
Highlight:

Fiber Optic Pigtail

,

Multimode Pigtail

,

FC pigtail

Length:
Customized
Adaptor Type:
FC
Fiber Type:
Multimode, OM4
Jacket Material:
PVC
Operating Temperature:
-25~70 ℃
Standard:
IEC 60332-3C, IEC 60754-2, IEC 61034-2
Length:
Customized
Adaptor Type:
FC
Fiber Type:
Multimode, OM4
Jacket Material:
PVC
Operating Temperature:
-25~70 ℃
Standard:
IEC 60332-3C, IEC 60754-2, IEC 61034-2
Fiber Optic Pigtail Multimode OM4 FC Adaptor



Basic Information



Model NO.

FF-FC-A1a-OM4-1M

Application

Communication

Type

Multi-mode Fiber

Connection Structure

FC

Material Shape

Round Wire

Allowed Lateral Pressure

100(N/100mm)

Allowed Tensile Strength

100N<1000N

Core

Single Core

Certification

RoHS, UL, CE, ISO9001, VDE, CCC

Brand

Tc

Sheath Material

PVC

Connector Type

FC

Polish Type

Upc

Fiber Type

Multi Mode(50/125/Om4)

Cable Diameter

0.9mm

Jacket Color

Rosy

Insertion Loss

0.3dB

Return Loss(Rl)

50dB

Connector Durability

500 Cycles

Jacket Material

PVC

Trademark

TC

Transport Package

Carton Box





























Product Description

  • Compliant with the standard of IEC
  • Good exchangeability good durability
  • High temperature stability
  • High quality insulation
  • 100% optically tested in the factory
  • Eliminates troublesome Field Terminations.
  • Friendly-environmental PVC material meets TIA/EIA 568A requirements.
  • Saves time and prevents incorrect patching with color-coded pigtails
  • The protective outer jacket is removable, for tighter bend radius requirements or high density installations
  • Perfect for use in Data Centers, premise installations, LAN, WAN, Telecommunication and Data Processing Networks





Product Highlights


1) 100% optically tested in the factory
2) Low Back Reflection and Insertion Loss
3) It can be quickly configured and set up to reduce site installation time
4) The fire retardant and flame retardant conform to IEC 60332-3C standard
5) The emission of non corrosive gas conforms to IEC 60754-2 standard




Product Structure


Connector type:FC
Polish Type: UPC
Fiber Type: Multi Mode(50/125/OM4)
Cable Diameter:0.9mm
Jacket Color:Rosy
Insertion Loss:0.3dB
Return Loss(RL):50dB
Connector Durability: 500 cycle
Jacket Material: PVC




Important Note



  • OEM and ODM orders are acceptable. Any kind of logo printing or design are optional.
  • Provide the best solutions to customers
  • Our cables & assemblies quality and service are ensured by our business philosophy of responsibility.
  • Professional engineers and advanced equipment guarantee our products of high quality,
  • 100% inspection before shipment.
  • Gold supplier authenticated by Global Sources. Safe and easy to buy from us.





  MECHANICAL CHARACTERISTIC
Retention Strength(N) Short Term 6N
Long Term 3N
Crush Resistance(N/100mm) Short Term 500N
Long Term 100N
Bending Radius(mm) Dynamic 20D
Static 10D
Installation Temperature(ºC) -5~50
Operation Temperature(ºC) -20~60
Transport & Storage Temperature(ºC) -25~70





  Our Certifications
S.N. Certification Standards Certification No. Scope
1 ISO 9001:2015 08918Q21785R0M Design, Production And Service Of Intelligent Premises Distribution System For Intelligent buildings
2 ISO 14001:2015 08918E20905R0M Design, Production And Service Of The Intelligent Building. Integrated Wiring System Products
3 OHSAS 18001:2007 08918S20811R1M Design, Production And Service Of The Intelligent Building. Integrated Wiring System Products
4 UL E473168 Communications cable, CM, CMX
5 UL E499944 110 wiring blocks, Model(s) 110P-1-100
Face plates, Model(s) FP-11-2 Series
Keystone Jack, Model(s) KJ-21-6A Series
Keystone jack patch panels, Model(s) PP-21-6-24-K, PP-12-24-K
Keystone jacks, Model(s) KJ-12-6
6 CE CLSH1509216220 The abinet, the wiring rack, the ground plug, the terminal box
7 CE CLSH1509216221 Module, panel, Install the panel
8 CE CLSH1509216222 Digital communication cable
9 CE CLSH1509216223 Indoor communication optical cable, Fiber jumper wire end, Communication outdoor optical cable
10 REACH THSH17051610882-1 Module, panel, Install the panel
KJ-12/21-3/5e/6/6A/7,FP-11/12/21/22-1/2/4/TV
HB-SJ/JHJ/LYQ/DY/GY/BY/TV/GX/JXK/JXL/DY/
TKJ-1/2/6/7/10/31-4/5/6/7/8/10/11/21/SC/LC/FC/ST
11 REACH THSH17051610882-2 Fiber optic cable
GJFJV-**B1/**A1b/**A1a/OM3
GJFJZY-**B1/**A1b/**A1a/OM3
FJ-LC/ST/SC/FC/MTRJ/MPO-B1/A1b/A1a
FF-LC/ST/SC/FC/MTRJ/MPO-B1/A1b/A1a
GYXH/GYXFH-1B6/2B6GYXTW-**B1/**A1a/**A1a,
GYTA/S-**B1/**A1b/**A1a,GYXTZW-**B1/**A1b/**A1a,
GYFTZA-**B1/**A1b/**A1a,GJFJVU-2**B1/A1a/A1b,
GYTA53-4-**B1/A1a/A1b,GYTAZ-**B1/**A1b/**A1a
12 REACH THSH17051610882-3 Digital communication cable
UTP-11/12/15/21/31/32/35-3/5/5E/6/6A/7
FTP-11/12/15/21/31/32/35-3/5/5E/6/6A/7
SFTP-11/12/15/21/31/32/35-3/5/5E/6/6A/7
HYA 5/10/20/30/50/100/150/200/300*2*0.5/0.4
PC-11-13/21-5E/6/6A/7
PC-RJ45/110
13 ROHS CHSH1412264880 Data cable
UTP-11-6-4P
14 ROHS CHSH1412264881 Information module
KJ-12-6
15 DELTA 2018-453 Cat6A RJ45 keystone jack characterized up to 500 MHz, 100Ω
KJ-21-6A
16 Intertek 180801871SHA-001 Performance Testing to compliance with ISO/IEC 11801-1:2017 - CAT 6 - 6 Connector Channel





Company Information

Tiancheng Smart Systems Group was listed at Shanghai Stock Exchange on 21st, Aug. 2017, it's stock name is TIANCHENG COMMUNICATION, and stock code is 872049. Tiancheng owns R&D and production base in 300,000 square meters, more than 1000 hard-working employees with the annual output value of 1.5 billion, which main productions based in Yangzhou, Shanghai, and Chengdu.

Shanghai Factory: No. 618, Guangxing Rd., Songjiang District, Shanghai, China
Jiangsu Factory: No. 2 Shisha Rd, Shatou Town, Guangling District, Yangzhou, Jiangsu, China


Specialized in the cable for 31 years, we are spearheading the development of low voltage cables and cabling systems. It has awarded as more than 30 titles of outstanding enterprises, such as Top 100 Private Enterprise, 2019 most Influential Brand of China's Smart Construction, Top 10 Brand Enterprise of Originality, Top 10 Brand Enterprise of Smart Home System, High-tech Enterprise and Star Scientific and Innovative Enterprise. The Quality of products has been fully affirmed and recognized by tens of thousands of customers, as well as over 10,000 landmark projects.

For 9 consecutive years, it has been awarded the top10 brands of cabling system in China. All the Cabling systems products and services are fitting and over the market standards including GB50311, IEC 11801, EN50173 and EIA/TIA568. Its capabilities also include tailored offering for different industries, ranging from Cat8 Classll to Cat5e, from welding and preassembled 10G to 400G optical link, AIM infrastructure security and monitoring MPTL integrated solutions and products, as well as 192 core Ultra HD solutions and products.

We also work hard to provide first-class low voltage cable products for BA system, as well as security and monitoring systems both at home and abroad. Its range includes tens of thousands of varieties and specifications so as to meet the market demand.




  Our Service
MOQ & Leading time 1) Sample order:
a) 1-3 days for our existing samples for reference.
b) 3-5 days if you want to customize your product and logo.
2) Small order:
a) 1-3 days if the products are in stock
b) 3-5 days if the products are out of stock
3) Bulk order:
7-30 days
4) ODM & Customized products:
7-15 days after confirmed detailed specifications and design drawing.
Shipment 1) Shipping for Sample order or small order:
a) By DHL, FedEx, UPS, EMS, TNT, etc. express
b) By Air
2) Shipping for bulk order:
a) By Ocean Shipping
b) By buyer's shipping agent
3) Relevant taxes and shipping costs:
Depend on the conditions of shipping, e.g. FOB, Ex-works, CIF, CFR, and C&F/CNF, etc.
Pre-Sale Service 1) Custom design.
2) Product consulting.
3) Free drawing.
4) Providing free samples and showing photos.
5) Welcomed to send your staffs for checking, and we can provide a car to pick them up from wherever they are.
After-Sale Service 1) Installation instructions.
2) Quality complaints.
3) We will keep you in contact in 24 hours and also keep in touch for further consulting service.
Warranty 1) Every cable we provide for you is a quality product that is strictly in line with industry standards.
2) All the cables are fully warranted against defects in material and workmanship with a lifetime guarantee. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.
