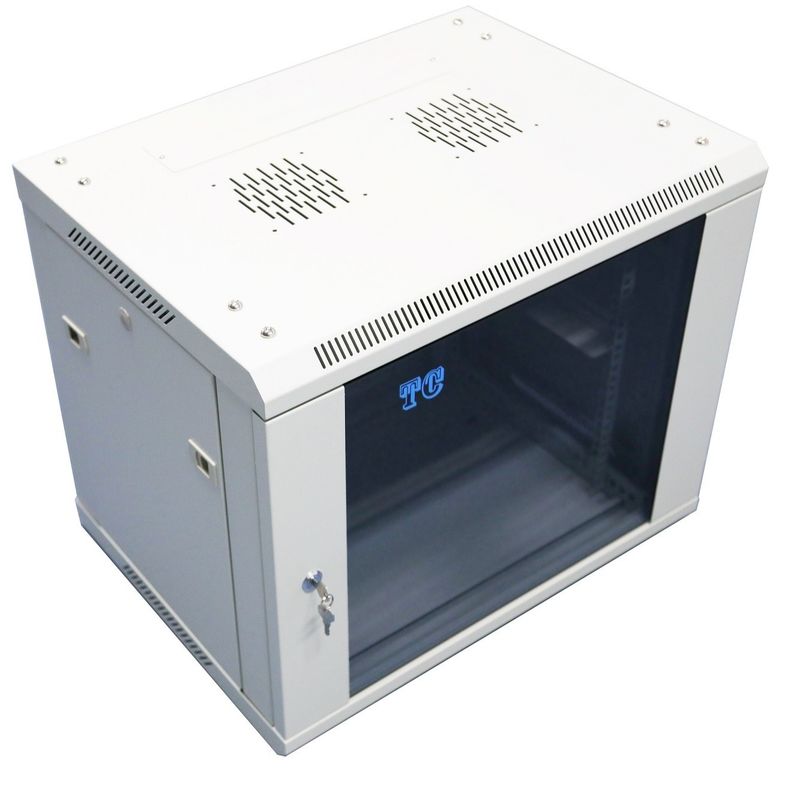

Network Wall Mounted Rack Cabinet 18U Rack Cabinet 19 Inch

Product Details

Place of Origin: China

Brand Name: TC

Model Number: AB-21-64

Payment & Shipping Terms

Get Best Price
Highlight:

450mm Network Rack Cabinet

,

18U Network Rack Cabinet

,

18U 19 rack cabinet

Application:
Network Cabling
Rack Unit:
18-6U
Front Door:
Glass Door
Protection Rating:
IP20
Material:
SPCC Cold Rolled Steel
Color:
Light Gray
Depth:
600mm
Width:
450mm
Standard:
ISO/IEC 11801, TIA/EIA568.2-D
Application:
Network Cabling
Rack Unit:
18-6U
Front Door:
Glass Door
Protection Rating:
IP20
Material:
SPCC Cold Rolled Steel
Color:
Light Gray
Depth:
600mm
Width:
450mm
Standard:
ISO/IEC 11801, TIA/EIA568.2-D
Network Wall Mounted Rack Cabinet 18U Rack Cabinet 19 Inch

19'' Wall Mounted Cabinet, 19 Inch Network Rack Cabinet Wall Mounted​ Application

These network racks, specially designed for equipment rooms and administration rooms, can house power supply and cooling systems, and install heavy equipment. The wall-mounted racks are mainly used in CP distribution in small server rooms or large public places and distribution rooms whose coverage is limited by the size of smart buildings. The TC wall-mounted racks are designed for network application, making it possible to securely install and organize network equipment, patch panels, and other EIA-compliant 19" equipment.

Product Features

The racks have tempered glass front doors and cold-rolled perforated front doors (optional), single front/rear doors, and field-detachable side/rear doors, speeding up field installation and future maintenance. Meanwhile, all doors can be locked to support the inside device and information transmission.

The racks boast a high-strength cold-rolled steel structure, reasonable and solid, with electrostatic powder sprayed on the surface, effectively avoiding bumps and corrosion. Cooling fans and adjustable equipment trays are all pre-installed. The perforated design in the front door provides cooling for active equipment. Available with 5mm tempered glass or perforated front door, huge in interior space, elegant in outer appearance, exquisite in craft, and precise in size.

This product complies with GB/T 3047.2-92, ANSI/EIA RS-310-D, and DIN41491. It also provides a fast detachable structure and reasonable cable routing.

Application Standards
GB/T 18233 (ISO/IEC 11801); GB 50311; GB50174; TIA/EIA568.2-D


Specifications


Protection Rating

IP20

Main Material

SPCC high-quality high strength cold rolled steel

Thickness

IT Racks: Square frame: 2.0mm, Beam: 1.5mm, Front/Rear/Top/Bottom Cover: 1.2mm, Others ≥ 1.0mm
Wall-Mounted Racks: Square frame: 1.5mm, Beam: 1.2mm, Front Door: 1.2mm, Others ≥ 1.0mm

Mounting Rails

In accordance with GB3047.2, IEC297-2, DIN41491 PART1, DIN41494 PART7, ANSI/EIARS-310-D; Compatible with ETSI



Model

Description

Size
(H× W× D mm)

Color

AB-21-64-18

18U Wall-Mounted Rack, 1*Shelf, 20*Screw, Front Glass Door

916×600×450

Light Gray RAL7035

AB-21-64-15

15U Wall-Mounted Rack, 1*Shelf, 20*Screw, Front Glass Door

782×600×450

Light Gray RAL7035

AB-21-64-12

12U Wall-Mounted Rack, 1*Shelf, 20*Screw, Front Glass Door

648×600×450

Light Gray RAL7035

AB-21-64-9

9U Wall-Mounted Rack, 1*Shelf, 20*Screw, Front Glass Door

515×600×450

Light Gray RAL7035

AB-21-64-6

6U Wall-Mounted Rack, 1*Shelf, 20*Screw, Front Glass Door

381×600×450

Light Gray RAL7035
