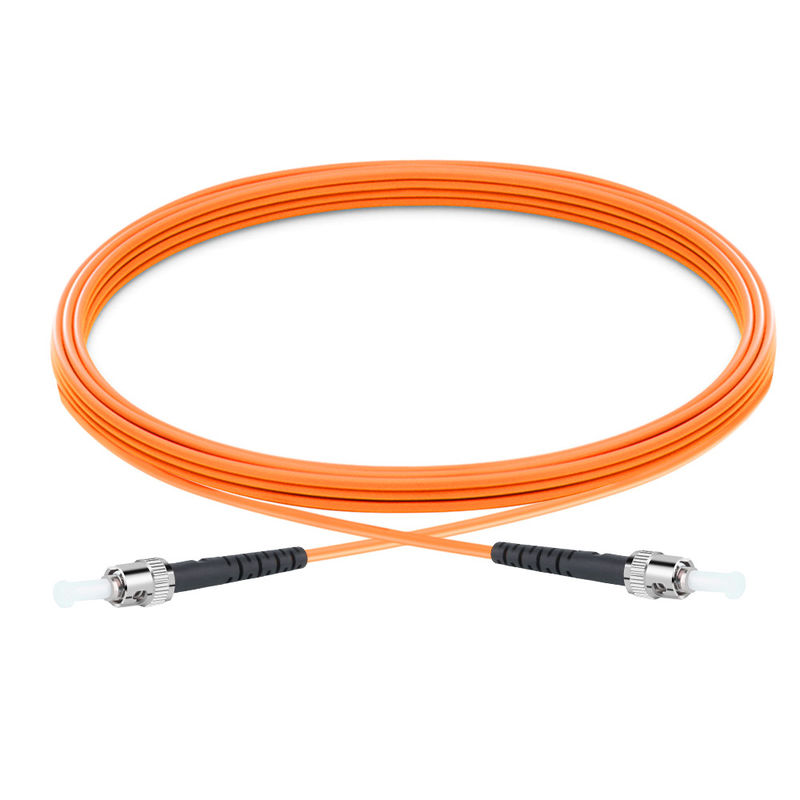

Multimode A1b OM1 Fiber Optic Patch Cord ST ST Fiber Jumper

Product Details

Place of Origin: China

Brand Name: TC

Certification: UL, RoSH, REACH, CE

Model Number: FJ-ST-ST-A1b-1M

Payment & Shipping Terms

Get Best Price
High Light:

UL 1M Fiber Optic Patch Cord

,

3mm FJ Fiber Optic Patch Cord

,

UL 1M st to lc fiber jumper

Length:
Customized
Cable O.D.:
2.0/3.0mm
Fiber Type:
MM, A1b, OM1
Core:
Simplex/Duplex
Sheath:
PVC
Adaptor:
ST
Insertion Loss:
≤0.3dB
Standard:
IEC 60332-3C, IEC 60754-2, IEC 61034-2
Length:
Customized
Cable O.D.:
2.0/3.0mm
Fiber Type:
MM, A1b, OM1
Core:
Simplex/Duplex
Sheath:
PVC
Adaptor:
ST
Insertion Loss:
≤0.3dB
Standard:
IEC 60332-3C, IEC 60754-2, IEC 61034-2
Multimode A1b OM1 Fiber Optic Patch Cord ST ST Fiber Jumper

Fiber Optic Patch Cord, Fiber Optic Jumper, Fiber Patch Cable, ST-ST, OM1​ Applications


In optical fiber cabling system, the fiber optic patch cord provides connections between hardware equipment and devices, or between devices and optical fiber links.



Included with optical fiber patch cord are multimode and 10G multimode. Generally, singlemode cable is yellow while its connector and protection sleeve is blue; multimode is orange while its connector and protection sleeve is cream or black.




Product Features


Pre-termination and testing in factories to ensure its transmission performance;



  • Fast network configuration to speed up installation;
  • Fire rating and flame resistance in accordance with IEC 60332-3C;
  • Non corrosive gas emission in accordance with IEC 60754-2;
  • Low smoke zero halogen emission in accordance with IEC 61034-2;
  • With standard ST adapters;
  • 1- and 2-core, all available as custom tailored products;
  • Insertion Loss < 0.3dB;
  • Return Loss > 50dB;
  • Custom tailored services for length, quantity of cores and physical structures.




Application Standards


YD/T 926.3, IEC 60332-3C, IEC 60754-2, IEC 61034-2





Technical Details



  Optical Properties
Insertion
Loss
Interchangeability Return Loss
≤ 0.3dB ≤ 0.2dB APC singlemode ≥ 60dB PC singlemode ≥ 50dB PC multimode ≥ 35dB





  Mechanical Properties
Quantity of Cores 1 2
Tensile Strength 150 300
Crush Resistance 15 30
Min. Bend Radius during
Installation (mm)
20 Times the Optical Fiber Diameter 20 Times the Optical Fiber Diameter
Min. Bend Radius during
Operation (mm)
10 Times the Optical Fiber Diameter 10 Times the Optical Fiber Diameter
Installation Temperature
Range (℃ )
-5 to +50 -5 to +50
Operation Temperature
Range (℃ )
-20 to +60 -20 to +60
Delivery and Storage
Temperature Range (℃ )
-25 to +70 -25 to +70



Important Note
® OEM and ODM orders are acceptable. Any kind of logo printing or design are optional.
® Provide the best solutions to customers
® Our cables & assemblies quality and service are ensured by our business philosophy of responsibility.
® Professional engineers and advanced equipment guarantee our products of high quality,
® 100% inspection before shipment.
® Gold supplier authenticated by Global Sources. Safe and easy to buy from us.
