4kW To 30kW TCMC Series Rack Mounted Air Conditioner Data Center Air Conditioning

Product Details

Place of Origin: China

Brand Name: TC

Certification: SNMP, TCP/IP

Model Number: TCMC-*

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Payment Terms: L/C, T/T, Western Union, MoneyGram

Get Best Price
Highlight:

4kW 30kW Mounted Air Conditioner

,

Rack Mounted Air Conditioner Data Center

,

TCMC Series Air Conditioner Data Center

Power Source:
220V~/50Hz
Coil Material:
Brass Forging Aluminum Fin
Refrigerant:
R410A
Outdoor Units Power Supply:
220V~/50Hz
Power Source:
220V~/50Hz
Coil Material:
Brass Forging Aluminum Fin
Refrigerant:
R410A
Outdoor Units Power Supply:
220V~/50Hz
4kW To 30kW TCMC Series Rack Mounted Air Conditioner Data Center Air Conditioning

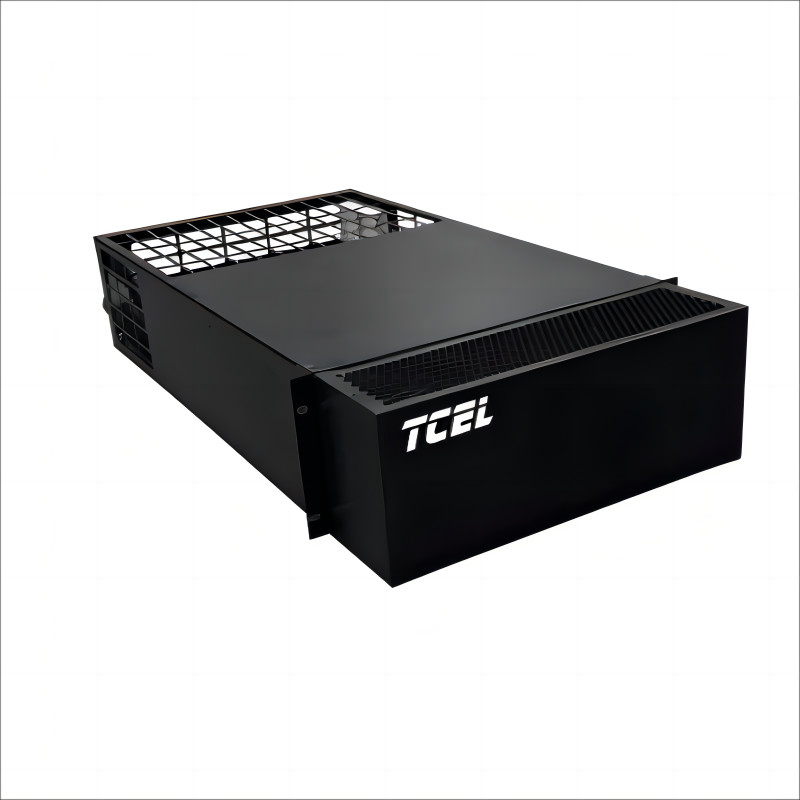

4kW to 30kW TCMC Series Rack Mounted Air Conditioner 4U Size



Product Application
TCMC Series Rack mounted Air Conditioner is mainly intended to cool the servers in small micro-modular data centers, such as modular data centers, mini data centers  and so on, and widely used for server room cabinets and edge computer rooms in the government, banks, schools, enterprises and institutions.

Refrigeration capacity
4 to 30kW

Product Features

High Efficiency and Energy Reduction
• Close to heat source, high-efficient, total heat, energy efficiency ratio of 3.3;
• R410A Eco-Refrigerant;
• Efficient EC fan coupled with EC compressor.

High Reliability
• 24 hours, 365 days of continuous operation, with a lifespan of 10 years;
• All accessories subject to rigorous inspection and testing, all in stable performance;
• Multiple protection for proper operation.

Flexible Configuration
• 4U of rack space, perfectly matched to the server rack;
• Multiple return air methods available to meet a variety of installation requirements
• Equipped with a handle for easy installation and maintenance.

Smart Control
• Multi-channel sensor monitoring,  advanced PID control technology;
• Sound protection and alarm function, master diagnostic function;
• RS485 smart communication interface for easy remote monitoring.



Technical Specifications

Model Unit TCMC04 TCMC08 TCMC15 TCMC30
Overall Cooling Capacity (Max Air Volume) kW 4.5 8.8 15.9 31.2
Overall Cooling Capacity (Rated Air Volume) kW 4.2 8 14 28.8
Quantity of Fans No. 1 1 1 2
Air Volume m³/h 750 1900 2400 5450
Power Source -- 220V~/50Hz
Max Input Current for The Entire Body A 8 21.5 28 55
Coil Material -- Brass forging aluminum fin
Refrigerant -- R410A
Size for Liquid Pipe / Air Pipe (Copper) mm 9.52/12.7 9.52/15.88 9.52/15.88 9.52/15.88
Condensate Pump Size (Optional) -- -- 6mm PE flexible pipe 6mm PE flexible pipe 6mm PE flexible pipe
Indoor Units Operating Weight kg 26 55 75 100
Indoor Units Size (W*D*H) mm 439*878*176 440*903*440 440*996*530 440*996*930
Model for Corresponding Outdoor Units -- TCMC04A1W TCMC08A1W TCRV050B1 2*TCRV050B1
Max Input Current for the Outdoor Units A 6.5 18.5 24.9 24.9
Outdoor Units Power Supply -- 220V~/50Hz
Outdoor Units Weight (Single) kg 48 105 115 115
Outdoor Units Size (W*D*H) mm 856*296*617 1100*430*810 900*350*1160 900*350*1160



4kW To 30kW TCMC Series Rack Mounted Air Conditioner Data Center Air Conditioning 0

4kW To 30kW TCMC Series Rack Mounted Air Conditioner Data Center Air Conditioning 1

4kW To 30kW TCMC Series Rack Mounted Air Conditioner Data Center Air Conditioning 2

4kW To 30kW TCMC Series Rack Mounted Air Conditioner Data Center Air Conditioning 3

4kW To 30kW TCMC Series Rack Mounted Air Conditioner Data Center Air Conditioning 4



4kW To 30kW TCMC Series Rack Mounted Air Conditioner Data Center Air Conditioning 5
