19 Inch Modular Design Cold & Hot Aisle Containment Modular Data Center

Product Details

Place of Origin: China

Brand Name: TC

Certification: GB/T 18233 (ISO/IEC 11801); GB 50311; GB50174; TIA/EIA568-C.2

Model Number: GM-*

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Payment Terms: L/C, T/T, Western Union, MoneyGram

Get Best Price
Highlight:

Modular Design Modular Data Center

,

19 Inch Modular Data Center

,

Aisle Containment Modular Data Center

Standard:
GB/T 18233 (ISO/IEC 11801); GB 50311; GB50174; TIA/EIA568-C.2
Dimensions:
19 Inch
Size Of Server Rack:
600X1200X2000mm (42U) W X D X H
Size Of PDU:
600X1200X2000mm (42U) W X D X H (customized)
Standard:
GB/T 18233 (ISO/IEC 11801); GB 50311; GB50174; TIA/EIA568-C.2
Dimensions:
19 Inch
Size Of Server Rack:
600X1200X2000mm (42U) W X D X H
Size Of PDU:
600X1200X2000mm (42U) W X D X H (customized)

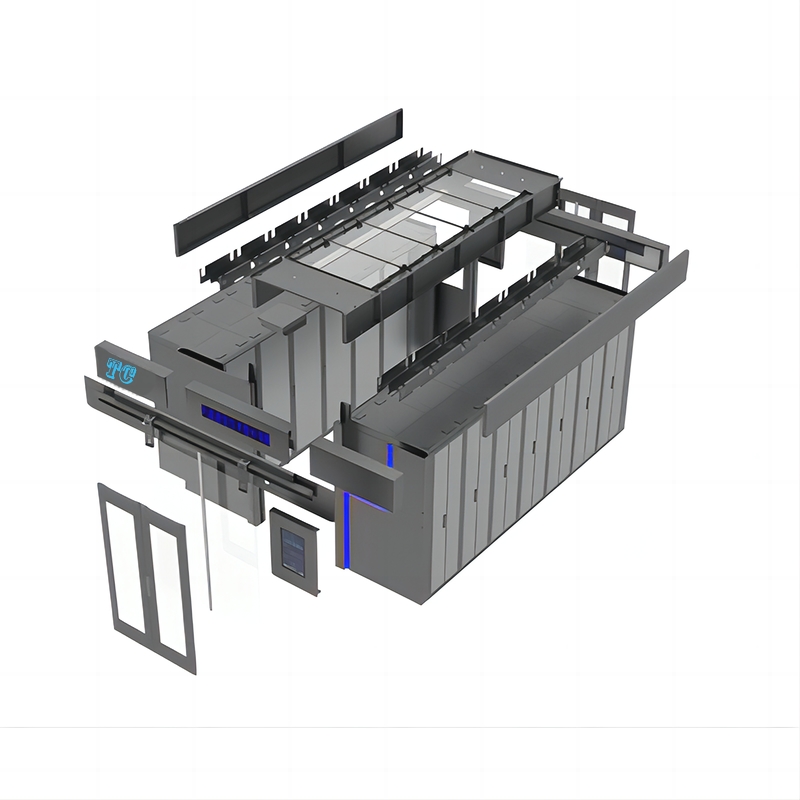

19 Inch Modular Design Cold & Hot Aisle Containment Modular Data Center
19 Inch, Modular Design, Cold & Hot Aisle Containment Modular Data Center
Product Application
Modular Data Center is designed for equipment rooms, medium- and large data centers. Standardized components, de-engineered, ensure data center production in factories and realize the overall delivery to customers. Customers can quickly acquire products as needed and expand capacity according to businesses.

Product Features
There contains a highly integrated design philosophy that the channel module serves as server room in which it boasts UPS, air conditioner system, smart power distribution system, environment monitoring system, access control system, etc.
Modular design makes it easier to install and maintain. Standard ports, prefabrication inspection, field deployment and maintenance ensure a shorter online time.
Investment in infrastructure construction has been decreased due to high protection rating, low noise and easy-to-deploy under harsh environment conditions.
Thanks to high efficient green energy reduction, dual conversion online UPS, DC frequency conversion fan, smart power distribution as well as supervision and control system, the cabinet guarantees the uptime availability and stability. The PUE rating drops to 1.4.
The front and rear door can be customized for various types of light alarms under different working conditions. Touch screen control panel can record condition-based information in real time.
Various enclosures, cable trays and fire resistant retractable skylights are available.
Sophisticated column air conditioner, smart power distribution cabinet, batteries and fire extinction system can all be flexibly configured according to different demands so as to provide users with a comprehensive solution and best quality services.

Application Standards
GB/T 18233 (ISO/IEC 11801); GB 50311; GB50174; TIA/EIA568-C.2

Main Specifications



Type Item Specifications
Server Rack Standards In accordance with GB3047.2, IEC297-2, DIN41491 PART1, DIN41494 PART7,compatible with ETSI
Size 600X1200X2000mm (42U) W x D x H
Load-Bearing Capacity Static load capacity 1,800 kg, dynamic load capacity 800 kg, 9.0 magnitude earthquake resistance
Ventilation Rate of Perforated Door Single-open perforated front door, double-open perforated rear door (hexagon hole,round hole, waist hole available), ventilation rate up to 85%
Power Distribution Units Rated Power Single- or three-phase input, 50/60 Hz, 20 to 300 KVA
Brands of Moulded Case Circuit Breaker Schneider, ABB, Siemens (customized)
Size 600X1200X2000mm (42U) W x D x H (customized)
Functions Single/ two-way busbar, smart monitoring gauge in the backbone and the branch, anti-surge protection switch and protector
Air Conditioning System Air Conditioning Type Precision air conditioner, column-type air conditioner, rack-mounted air conditioner,air conditioner in small server room
Cooling Type Water cooling, air cooling, frozen water cooling
Way of Isolation Cool and hot aisle containment
UPS System Rated Capacity 25 to 300KVA
Rated Input 3-phase, 5-wire 380Vac, 50/60Hz
Working Capacity Backbone 95%; ECO mode 98%
Storage Battery Maintenance-free, lead-acid batteries
Environment Monitoring System Environment Monitoring Hygrometer and thermometer, smoke alarm, water leakage alarm, door access, HD cameras
Monitoring Equipment Precision power distribution cabinets, UPS, air conditioning, storage batteries, fire fighting systems
Alarming Methods 24-inch touch display, local sound and light alarm, voice alarm, SMS alert
Structured Cabling Transmission Performance Cat6/cat6a copper cable, OM3/OM4 multimode fiber optic cable, OS2 singlemode fiber optic cable
Safety Performance IEC60332-3 flame retardant, safe and environmentally friendly
