Highlight:
                                                                                                                                                                                                                                                IEC 60754 2 Fiber Optic Pigtail, PVC Sheath Fiber Optic Pigtail, IEC 60754 2 single mode pigtail


Length:	Customized	Adaptor Type:	LC
Fiber Type:	Single Mode	Jacket Material:	PVC/LSZH
Operating Temperature:	-25~70 ℃	Standard:	IEC 60332-3C, IEC 60754-2, IEC 61034-2

Length:	Customized
Adaptor Type:	LC
Fiber Type:	Single Mode
Jacket Material:	PVC/LSZH
Operating Temperature:	-25~70 ℃
Standard:	IEC 60332-3C, IEC 60754-2, IEC 61034-2

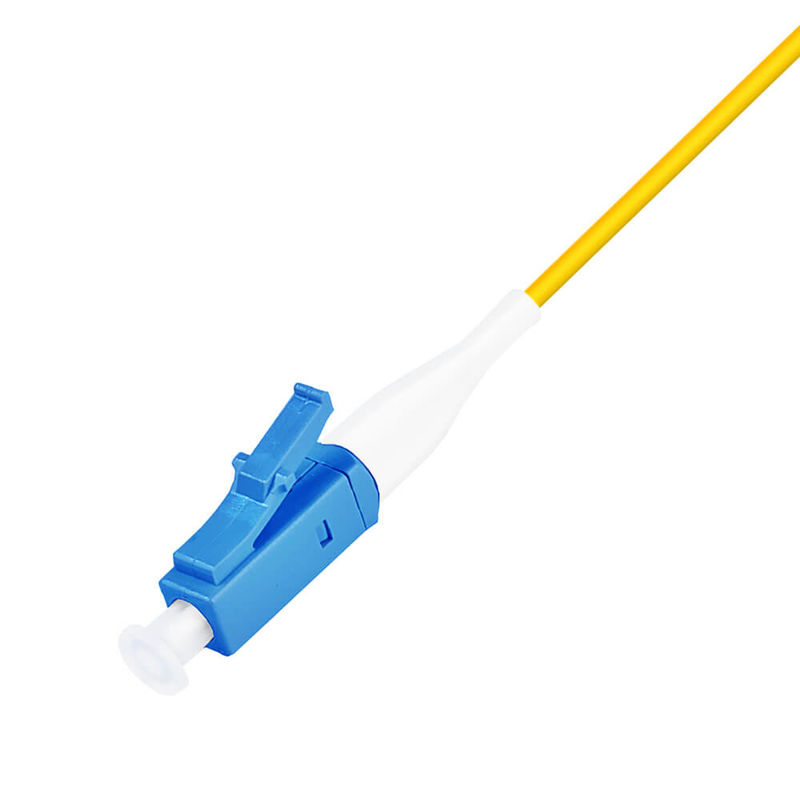

Fiber Optic Pigtail Single Mode B1 LC Adaptor

Fiber Optic Pigtail, Single Mode, FC Adaptor, PVC Sheath Applications

Optical fiber pigtail can be used in a variety of fiber termination applications, joint applications in splice trays of patch panels, together with FTTD applications.

Product Features

Pre-termination and testing in factories to ensure its transmission performance:

Yellow singlemode pigtail, orange multimode pigtail;
Fast network configuration to speed up installation;
Fire rating and flame resistance in accordance with IEC 60332-3C;
Non corrosive gas emission in accordance with IEC 60754-2;
Low smoke zero halogen emission in accordance with IEC 61034-2;
Insertion Loss ＜ 0.3dB;
Return Loss ＞ 50dB;
Custom tailored services for length, quantity of cores and physical structures.

Application Standards

YD/T 926.3, IEC 60332-3C, IEC 60754-2, IEC 61034-2

Technical Details

Optical Properties
Insertion Loss	Interchangeability	Return Loss
≤ 0.3dB	≤ 0.2dB	APC singlemode ≥ 60dB	PC singlemode ≥ 50dB	PC multimode ≥ 35dB

Mechanical Properties
Quantity of Cores	1
Tensile Strength	150
Crush Resistance	15
Min. Bend Radius during Installation (mm)	20 Times the Optical Fiber Diameter
Min. Bend Radius during Operation (mm)	10 Times the Optical Fiber Diameter
Installation Temperature Range (℃ )	-5 to +50
Operation Temperature Range (℃ )	-20 to +60
Delivery and Storage Temperature Range (℃ )	-25 to +70
