Product Details
Place of Origin: China
Brand Name: TC
Model Number: Singlemode G.657A2
Payment & Shipping Terms
Mini. Bend Radius: |
7.5 Mm |
Wavelength: |
1260 Nm To 1625 Nm |
Single Fiber Max. Value: |
0.2 PS/√km |
Zero Dispersion Wavelength: |
1300-1322 Nm |
Cladding Diameter: |
125±0.7 μm |
Coating Diameter: |
245±5 μm |
Coating Non-Circularity: |
≤ 3.0 % |
Warp Degree: |
≥4 M |
Mini. Bend Radius: |
7.5 Mm |
Wavelength: |
1260 Nm To 1625 Nm |
Single Fiber Max. Value: |
0.2 PS/√km |
Zero Dispersion Wavelength: |
1300-1322 Nm |
Cladding Diameter: |
125±0.7 μm |
Coating Diameter: |
245±5 μm |
Coating Non-Circularity: |
≤ 3.0 % |
Warp Degree: |
≥4 M |
Product Application

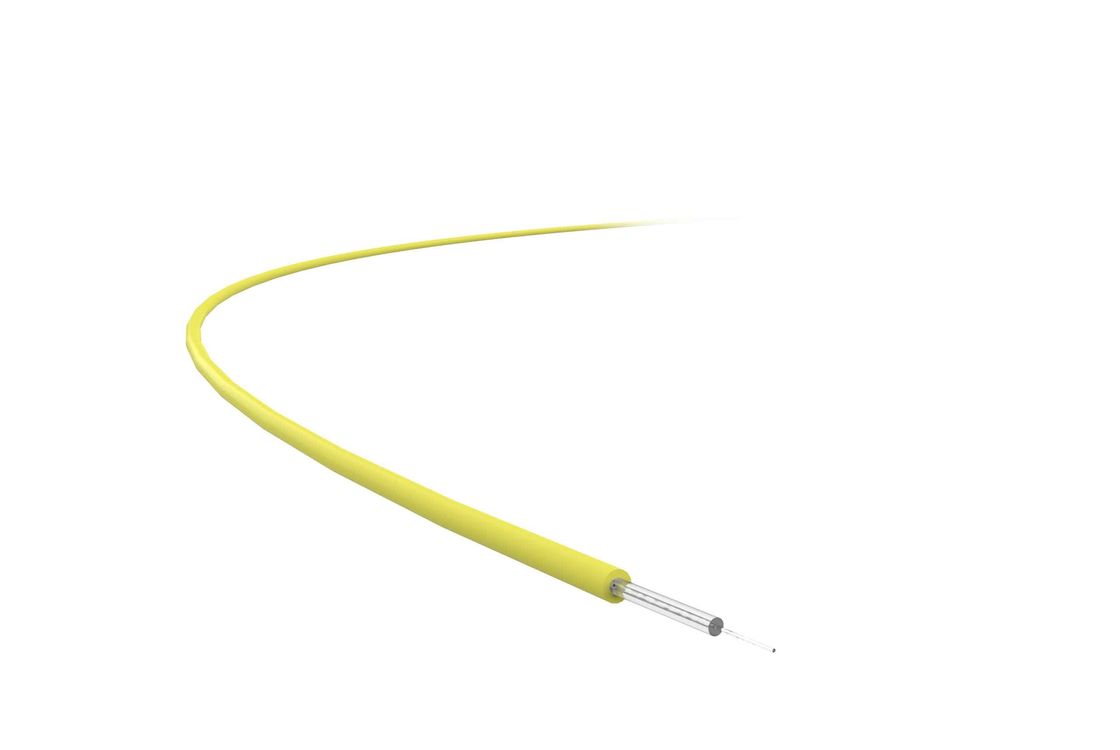

Bend insensitive singlemode fiber for access network boasts all the features that the non-dispersion shifted one has, and enjoys even more excellent bending performance at 1260nm-1625nm transmission wavelength.
In conditions that long wavelength bending is required, its bend radius is minimized to 7.5mm, while its additional attenuation at 1625nm wavelength is 0.8dB. The fiber applies for different structures of fiber optic cables, especially for tight buffered cable and drop cable, ideal for Fiber to the Home (FTTH) and Fiber to the Building (FTTB).
Product Features
Bend insensitive singlemode fiber for access network exceeds the parameters specified in ITU-T Recommendation G.652.D/G.657.A2 and IEC60973-2-50 B1.3/B6 Standards.
It invests in VAD technology which results in singlemode fibers' stable refractive-index profile, precise geometric size and extremely good bending performance. The singlemode fiber has completely eliminated water absorption around 1383nm, providing expanded transmission wavelengths from 1260nm to 1625nm; its superior bending performance can meet the special demands on the bend radius; it is compatible with the existing fibers under G.652.D Standards; its precise geometric size ensures low loss and high strength splice; what's more, its PMD contributes a lot to the long- and medium distance high data rate transmission.
Technical Details
| Mechanical Properties | Conditions | Unit | Value |
| Tension Testing | % | ≥1.02 | |
| N | ≥9.1 | ||
| Gpa | ≥0.704 | ||
| Coating Stripping Force | Peak value Typical average value |
N N |
1.3-8.9 |
| 1.9 | |||
| Tensile Strength | Weibull Probability 50％ Weibull Probability 15％ |
Mpa Mpa |
≥4000 |
| ≥3050 | |||
| Dynamic Fatigue Parameter (Nd) | ≥20 |
| Macrobend Loss | Conditions | Unit | Value |
| 10 Circles Φ30mm | 1550nm | dB | ≥0.3 |
| 10 Circles Φ30mm | 1625nm | dB | ≥0.1 |
| 10 Circles Φ20mm | 1550nm | dB | ≥0.1 |
| 10 Circles Φ20mm | 1625nm | dB | ≥0.2 |
| 10 circles Φ15mm | 1550nm | dB | ≥0.4 |
| 10 circles Φ15mm | 1625nm | dB | ≥0.8 |
| Optical Properties | Conditions | Unit | Value |
| Attenuation | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 | |
| 1383nm | dB/km | ≤0.35 | |
| 1310-1625nm | dB/km | ≤0.36 | |
| Zero Dispersion Wavelength | nm | 1300-1322 | |
| Zero Dispersion Slope | ps/(nm·km) | ≤0.091 | |
| Typical Value of Zero Dispersion Slope | ps/(nm·km) | 0.086 |
| Polarization Mode Dispersion (PMD) | Conditions | Unit | Value |
| Single Fiber Max. Value | PS/√km | 0.2 | |
| PMD Link Value (M = 20, Q = 0.01%) | PS/√km | 0.1 | |
| Typical Value | PS/√km | 0.04 | |
| Cutoff Wavelength λ | nm | ≤1260 | |
| Cutoff Wavelength λc | nm | 1150－1330 | |
| Mode Field Diameter (MFD) | 1310nm | μm | 8.7±0.4 |
| 1550nm | μm | 9.8±0.5 | |
| Effective Refractive Index | 1310nm | 1.4672 | |
| 1550nm | 1.4683 | ||
| Attenuation Discontinuity | 1310nm | dB | ≤0.03 |
| 1550nm | dB | ≤0.03 |
| Geometric Properties | Conditions | Unit | Value |
| Cladding Diameter | μm | 125±0.7 | |
| Cladding Non-Circularity | ％ | ≤0.8 | |
| Core/Cladding Concentricity Deviation | μm | ≤0.5 | |
| Coating Diameter | μm | 245±5 | |
| Cladding/Coating Concentricity Deviation | μm | ≤12 | |
| Coating Non-Circularity | ％ | ≤3.0 | |
| Warp Degree | m | ≥4 |
| Environment Properties | Conditions | Unit | Value |
| Additional Attenuation of Temperature Cycle | －60℃ to＋85℃ | dB/km | ≤0.05 |
| Additional Attenuation of Heat Humidity Aging | 85℃, RH85%, 30 days | dB/km | ≤0.05 |
| Additional Attenuation of Immersion Aging | 23℃, 30 days | dB/km | ≤0.05 |
| Additional Attenuation of Dry Heat Aging | 85℃, 30 days | dB/km | ≤0.05 |
