Product Details
Place of Origin: China
Brand Name: TC
Model Number: OM3 Multimode
Payment & Shipping Terms
Zero Dispersion Wavelength: |
1295-1320 Nm |
Partial Discontinuity: |
≤ 0.1 DB |
Attenuation Inhomogeneity: |
≤ 0.1 DB |
Core Diameter: |
50±2.5 μm |
Core Non-Circularity: |
≤6.0 % |
Cladding Diameter: |
125±1 μm |
Tension Testing: |
≥9.0 N |
Dynamic Fatigue Parameter: |
≥ 25 |
Zero Dispersion Wavelength: |
1295-1320 Nm |
Partial Discontinuity: |
≤ 0.1 DB |
Attenuation Inhomogeneity: |
≤ 0.1 DB |
Core Diameter: |
50±2.5 μm |
Core Non-Circularity: |
≤6.0 % |
Cladding Diameter: |
125±1 μm |
Tension Testing: |
≥9.0 N |
Dynamic Fatigue Parameter: |
≥ 25 |
Product Application

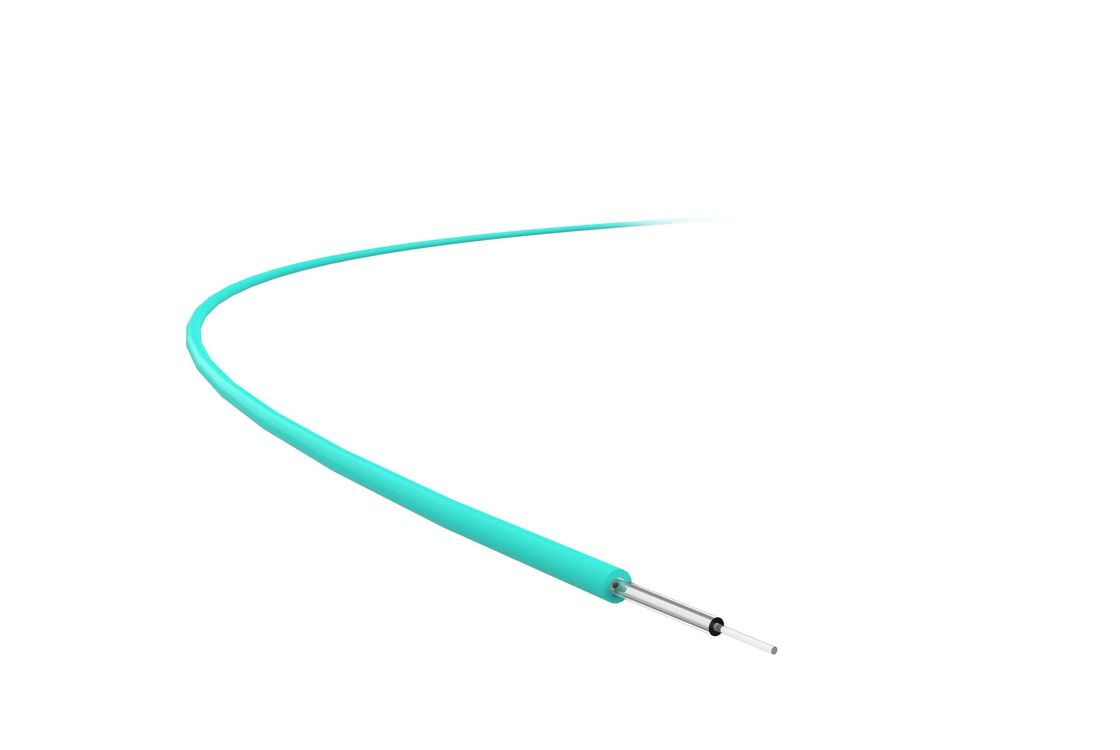

50/125μm OM3 fiber is a graded-index multimode type featuring a 50μm core diameter and a 125μm cladding diameter.
It is comprehensively optimized Vertical-Cavity Surface-Emitting Laser (VCSEL) at the 850nn wavelength on the basis of OM2 fiber, and passes Differential Modal Delay (DMD) test so as to attain the higher bandwidth and lower attenuation, and realize short distance high data rate transmission (OM3 fiber in support of 10GBase-SR 300m, 40GBase-SR4 and 100GBase-SR10 100m).
The fiber is suitable for different structures of fiber optic cables, such as ribbon fiber cable, stranded loose tube cable, slotted core fiber cable, central-tube fiber optic cable, tight buffered fiber optic cable, etc., and it is compatible with other fibers that use different manufacturing technologies.
Product Features
The fiber is ideal for 850nn and 1300nm operating wavelengths; it optimizes Vertical-Cavity Surface-Emitting Laser (VCSEL) with low attenuation and high bandwidth; its coating protection and glass property enjoys excellent performance.
Technical Details
| Optical Properties | Conditions | Value | Unit |
| Attenuation | 850nm | ≤2.80 | dB/km |
| 1300nm | ≤0.60 | dB/km | |
| Injection Bandwidth | 850nm | ≥200 | MHz.km |
| 1300nm | ≥500 | MHz.km | |
| Numerical Aperture (NA) |
0.200 ±0.015
|
||
| Group Refractive Index | 850nm |
1.482
|
|
| 1300nm |
1.477
|
||
| Zero Dispersion Wavelength |
1295-1320nm
|
||
| Zero Dispersion Slope |
1295nm -1300nm
|
≤0.001 | ps/(nm·km) |
|
1300nm-1320nm
|
≤0.11 | ps/(nm·km) | |
| Macrobend Loss, 100 Circles, 37.5mm Radius | 850nm | ≤0.50 | dB |
| 1300nm | ≤0.50 | dB | |
| Back Scattering (1300nm) | Conditions | Value | Unit |
| Partial Discontinuity | ≤0.1 | dB | |
| Attenuation Inhomogeneity | ≤0.1 | dB | |
| Different Values of Bi-Direction and Back Scattering | ≤0.1 | dB/km |
| Geometric Properties | Conditions | Value | Unit |
| Core Diameter |
50±2.5
|
μm | |
| Core Non-Circularity | ≤6.0 | % | |
| Cladding Diameter | 125±1 | μm | |
| Cladding Non-Circularity | ≤2.0 | % | |
| Core/Cladding Concentricity Deviation | ≤1.5 | μm | |
| Coating Diameter | 245±10 | μm | |
| Cladding/Coating Concentricity Deviation | ≤12.0 | μm |
| Environment Properties (850nm and 1300nm) | Conditions | Value | Unit |
| Additional Attenuation of Temperature | ≤0.15 | dB/km | |
| Additional Attenuation of Temperature and Humidity Circle | ≤0.20 | dB/km | |
| Additional Attenuation of Immersion Aging | ≤0.20 | dB/km | |
| Additional Attenuation of Hydrothermal Heating | ≤0.20 | dB/km | |
| Dry Heat Aging | ≤0.20 | dB/km |
| Mechanical Properties | Conditions | Value | Unit |
| Tension Testing | ≥9.0 | N | |
| Macrobend Additional Loss | 850nm | ≤0.5 | dB |
| Coating Stripping Force | Typical average value | 1.4 | N |
| Peak value | ≥1.3 ≤8.9 | N | |
| Dynamic Fatigue Parameter (Nd) | ≥25 | ||
