Product Details
Place of Origin: China
Brand Name: TC
Model Number: OM5 Multimode
Payment & Shipping Terms
Zero Dispersion Wavelength: |
1295-1320 Nm |
Partial Discontinuity: |
≤ 0.1 DB |
Attenuation Inhomogeneity: |
≤ 0.1 DB |
Core Diameter: |
50±2.5 μm |
Core Non-Circularity: |
≤ 5.0 % |
Cladding Diameter: |
125±1 μm |
Tension Testing: |
≥ 9.0 N |
Dynamic Fatigue Parameter: |
≥ 25 |
Zero Dispersion Wavelength: |
1295-1320 Nm |
Partial Discontinuity: |
≤ 0.1 DB |
Attenuation Inhomogeneity: |
≤ 0.1 DB |
Core Diameter: |
50±2.5 μm |
Core Non-Circularity: |
≤ 5.0 % |
Cladding Diameter: |
125±1 μm |
Tension Testing: |
≥ 9.0 N |
Dynamic Fatigue Parameter: |
≥ 25 |
Product Application

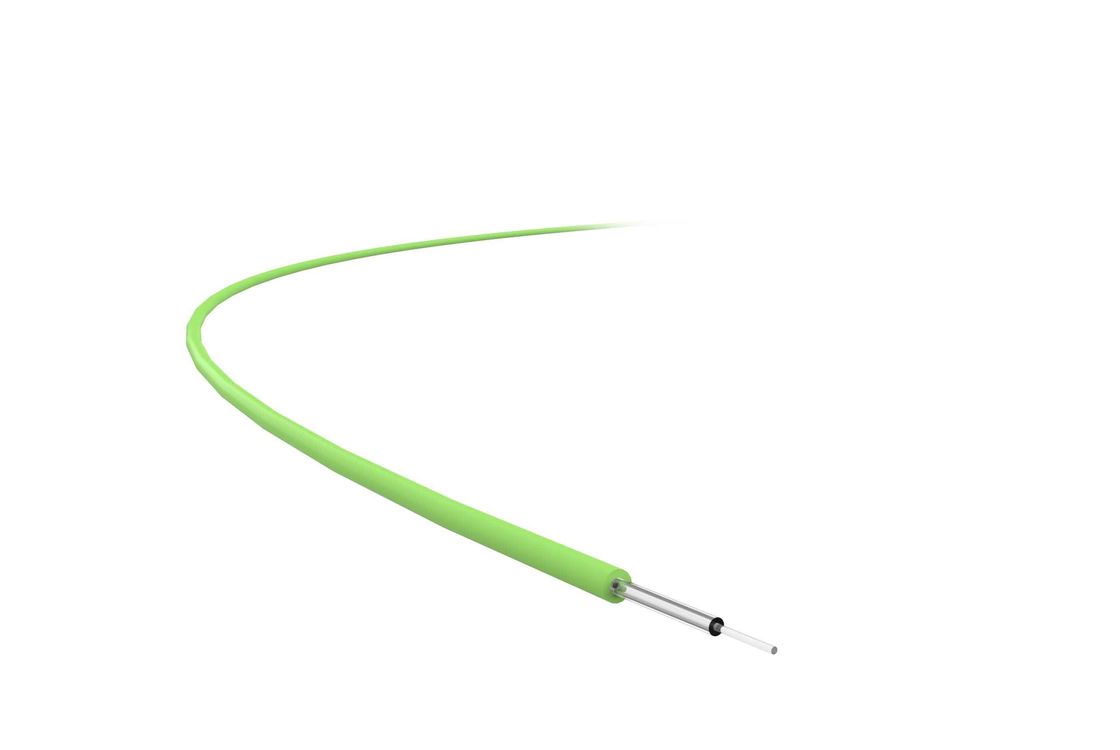

50/125μm OM5 fiber is the latest graded-index multimode type featuring a 50μm core diameter and a 125μm cladding diameter.
Its Effective Modal Bandwidth (EMB) requirement of 953nm wavelength has been increased. OM5, known as wideband multimode fiber (WBMMF), supports 150m transmission based on SWDM technology (at 850nm, 880nm, 910nm, 940nm wavelengths).
Product Features
The fiber is ideal for 850nm, 880nm, 910nm, 940nm (SWDM) as well as 1300nm operating wavelengths; its low attenuation and high bandwidth are optimized for IEEE802.3z Gigabit Ethernet transmission; its coating protection and glass property enjoys excellent performance.
Technical Details
| Optical Properties | Conditions | Data | Unit |
| Attenuation | 850nm | ≤2.30 | dB/km |
| 953nm | ≤1.70 | dB/km | |
| 1300nm | ≤0.60 | dB/km | |
| Injection Bandwidth | 850nm | ≥3500 | MHz.km |
| 953nm | ≥1850 | MHz.km | |
| 1300nm | ≥500 | MHz.km | |
| Length of 400Gb/s Ethernet | 150 | m | |
| Numerical Aperture (NA) | 0.200 ±0.015 | ||
| Group Refractive Index | 850nm | 1.482 | |
| 1300nm | 1.477 | ||
| Zero Dispersion Wavelength | 1295-1320nm | ||
| Zero Dispersion Slope | 1295nm -1300nm | ≤0.001 | ps/(nm·km) |
| 1300nm-1320nm | ≤0.11 | ps/(nm·km) | |
| Macrobend Loss, 2 Circles, 15mm Radius | 850nm | ≤0.10 | dB |
| 1300nm | ≤0.11 | dB | |
| Back Scattering (1300nm) | Conditions | Value | Unit |
| Partial Discontinuity | ≤0.1 | dB | |
| Attenuation Inhomogeneity | ≤0.1 | dB | |
| Different Values of Bi-Direction and Back Scattering | ≤0.1 | dB/km |
| Geometric Properties | Conditions | Value | Unit |
| Core Diameter |
50±2.5
|
μm | |
| Core Non-Circularity | ≤5.0 | % | |
| Cladding Diameter | 125±1 | μm | |
| Cladding Non-Circularity | ≤2.0 | % | |
| Core/Cladding Concentricity Deviation | ≤1.5 | μm | |
| Coating Diameter | 245±10 | μm | |
| Cladding/Coating Concentricity Deviation | ≤12.0 | μm |
| Environment Properties (850nm and 1300nm) | Conditions | Value | Unit |
| Additional Attenuation of Temperature | ≤0.1 | dB/km | |
| Additional Attenuation of Temperature and Humidity Circle | ≤0.1 | dB/km | |
| Additional Attenuation of Immersion Aging | ≤0.20 | dB/km | |
| Additional Attenuation of Hydrothermal Heating | ≤0.20 | dB/km | |
| Dry Heat Aging | ≤0.20 | dB/km |
| Mechanical Properties | Conditions | Value | Unit |
| Tension Testing | ≥9.0 | N | |
| Macrobend Additional Loss | 850nm | ≤0.5 | dB |
| Coating Stripping Force | Typical average value | 1.4 | N |
| Peak value | ≥1.3 ≤8.9 | N | |
| Dynamic Fatigue Parameter (Nd) | ≥25 | ||
