Product Details
Place of Origin: China
Brand Name: TC
Certification: UL, RoSH, REACH, CE
Model Number: FTP-11-5-
Payment & Shipping Terms
Minimum Order Quantity: 50 Boxes
Price: Negotiable
Packaging Details: Seaworthy Packing
Payment Terms: Western Union, T/T, L/C, MoneyGram
Type: |
Cat 5 F/UTP |
Polyester Belt: |
PET |
Insulation: |
HDPE |
Conductor Material: |
99.99% BC |
Conductor OD: |
24 AWG |
Rip Cord: |
Yes |
Drain Wire: |
Yes |
Standards: |
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2 |
Type: |
Cat 5 F/UTP |
Polyester Belt: |
PET |
Insulation: |
HDPE |
Conductor Material: |
99.99% BC |
Conductor OD: |
24 AWG |
Rip Cord: |
Yes |
Drain Wire: |
Yes |
Standards: |
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2 |

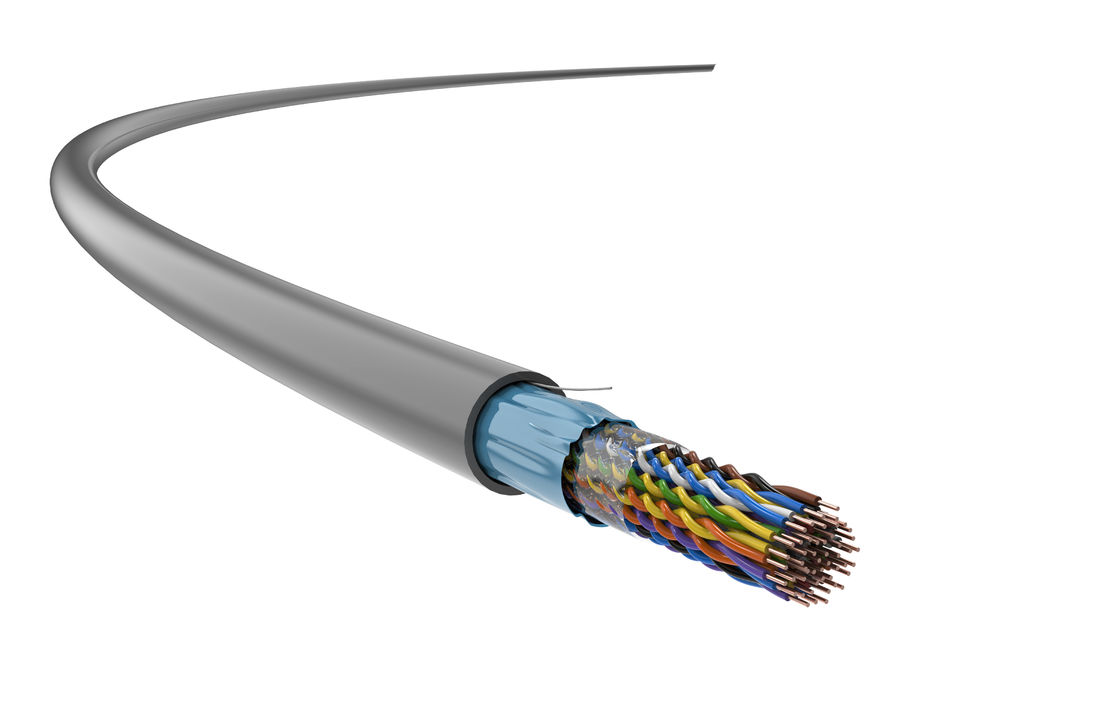

Cat 5 Telephone Cable, FTP Telephone Cable, Indoor Phone Cable, Multi-pair Telephone Cable Application
It provides transmission for backbone voice and data signals in the telecommunications cabling system, mainly used in the backbone voice system.
Multi-pair cable, crucial to building backbones, when connected to 110 patch panels, can achieve 16MHZ of voice and 100MHz of data transmission and distribution.
Product Features
TC's Cat 5 shielded multi-pair cable increases the lay density, invests a high quality HDPE material in the insulation layer jacket, and has working frequency of 100MHz, mainly used for voice transmission, 10Base-T/100Base-T network applications.
Application Standards
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2
Technical Details
Physical Specifications | |
Conductor Size (nominal value) |
0.5mm(AWG24)
|
Cable Configuration
|
Providing standard 16-pair, 25-pair
|
Electrical Properties | |
DC resistance (20℃ ) |
95Ω/km
|
Earth Capacity | ≦ 5.6 nF/100m (@1kHz) |
100MHz Characteristic Impedance |
100Ω±15Ω
|
Transverse Conversion Loss (TCL) |
None required
|
Delay Skew |
45ns/100m
|
NVP |
69%
|
Power Over Ethernet (POE)
|
Enhanced Power Over Ethernet under IEEE 802.3at
|
Mechanical Properties | |
Minimum Bend Radius (dynamic) |
4D (D= Outer Diameter)
|
Minimum Bend Radius (static) |
8D (D= Outer Diameter)
|
Maximum Installation Tension |
25N*P (P= Pair Quantity)
|
Anti-Extrusion Capacity |
1000N/10cm
|
Anti-Shock Capacity | ≥ 10 times |
Installation Temperature Range | -0℃ ~+40℃ |
Working Temperature Range |
-20℃ ~+75℃
|
Flammability (PVC) | |
PVC Flame Resistance (of single wire)
|
GB/T 18380.12 (IEC 60332-1-2)
|
Flammability (LSZH) | |
Flame Resistance (of single wire) | GB/T 18380.12 (IEC 60332-1-2) |
Smoke Density | GB/T 17651 (IEC 61034-1/-2) |
Hazardous Halogen Gas | GB/T 17650.1/.2 (IEC 60754-1/-2) |
