Home > products > Fiber Optic Pigtail > Fiber Optic Pigtail Multimode OM4 SC Adaptor PVC Jacket

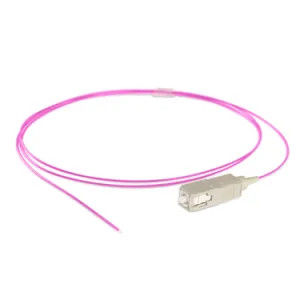

Fiber Optic Pigtail Multimode OM4 SC Adaptor PVC Jacket

Product Details

Place of Origin: China

Brand Name: TC

Model Number: FF-SC-A1a-OM4-1M

Payment & Shipping Terms

Get Best Price
High Light:

Tc SC Fiber Optic Pigtail

,

IEC 60754 2 Fiber Optic Pigtail

,

IEC 60754 2 pigtail fiber cable

Length:
Customized
Adaptor Type:
SC
Fiber Type:
Multimode, OM4
Jacket Material:
PVC
Operating Temperature:
-25~70 ℃
Standard:
IEC 60332-3C, IEC 60754-2, IEC 61034-2
Length:
Customized
Adaptor Type:
SC
Fiber Type:
Multimode, OM4
Jacket Material:
PVC
Operating Temperature:
-25~70 ℃
Standard:
IEC 60332-3C, IEC 60754-2, IEC 61034-2
Fiber Optic Pigtail Multimode OM4 SC Adaptor PVC Jacket

Basic Information



Model NO.
FF-SC-A1a-OM4-1M
Application
Communication
Type
Multi-mode Fiber
Connection Structure
SC
Material Shape
Round Wire
Allowed Lateral Pressure
100(N/100mm)
Allowed Tensile Strength
100N<1000N
Core
Single Core
Certification
RoHS, UL, CE, ISO9001, VDE, CCC
Brand
Tc
Sheath Material
PVC
Connector Type
Sc
Polish Type
Upc
Fiber Type
Multi Mode(50/125/Om4)
Cable Diameter
0.9mm
Jacket Color
Rosy
Insertion Loss
0.3dB
Return Loss(Rl)
50dB
Connector Durability
500 Cycles
Jacket Material
PVC
Trademark
TC
Transport Package
Carton Box























Product Description

  • Good exchangeability good durability.
  • Friendly-environmental PVC material meets TIA/EIA 568A requirements.
  • Eliminates troublesome Field Terminations
  • Saves time and prevents incorrect patching with color-coded pigtails
  • The protective outer jacket is removable, for tighter bend radius requirements or high density installations
  • Other lengths, core numbers, fiber optic joints, etc. can be customized according to customer specific requirements.
  • Perfect for use in Data Centers, premise installations, LAN, WAN, Telecommunication and Data Processing Networks

Product Highlights


1)100% optically tested in the factory.
2)Low insertion loss and high return loss
3)It can be quickly configured and set up to reduce site installation time
4)The fire retardant and flame retardant conform to IEC 60332-3C standard
5)The emission of non corrosive gas conforms to IEC 60754-2 standard




Product Structure


Connector type:SC
Polish Type: UPC
Fiber Type: Multi Mode(50/125/OM4)
Cable Diameter:0.9mm
Jacket Color:Rosy
Insertion Loss:0.3dB
Return Loss(RL):50dB
Connector Durability: 500 cycle
Jacket Material: PVC




Important Note


® OEM and ODM orders are acceptable. Any kind of logo printing or design are optional.
® Provide the best solutions to customers
® Our cables & assemblies quality and service are ensured by our business philosophy of responsibility.
® Professional engineers and advanced equipment guarantee our products of high quality,
® 100% inspection before shipment.
® Gold supplier authenticated by Global Sources. Safe and easy to buy from us.





  MECHANICAL CHARACTERISTIC
Retention Strength(N) Short Term 6N
Long Term 3N
Crush Resistance(N/100mm) Short Term 500N
Long Term 100N
Bending Radius(mm) Dynamic 20D
Static 10D
Installation Temperature(ºC) -5~50
Operation Temperature(ºC) -20~60
Transport & Storage Temperature(ºC) -25~70
