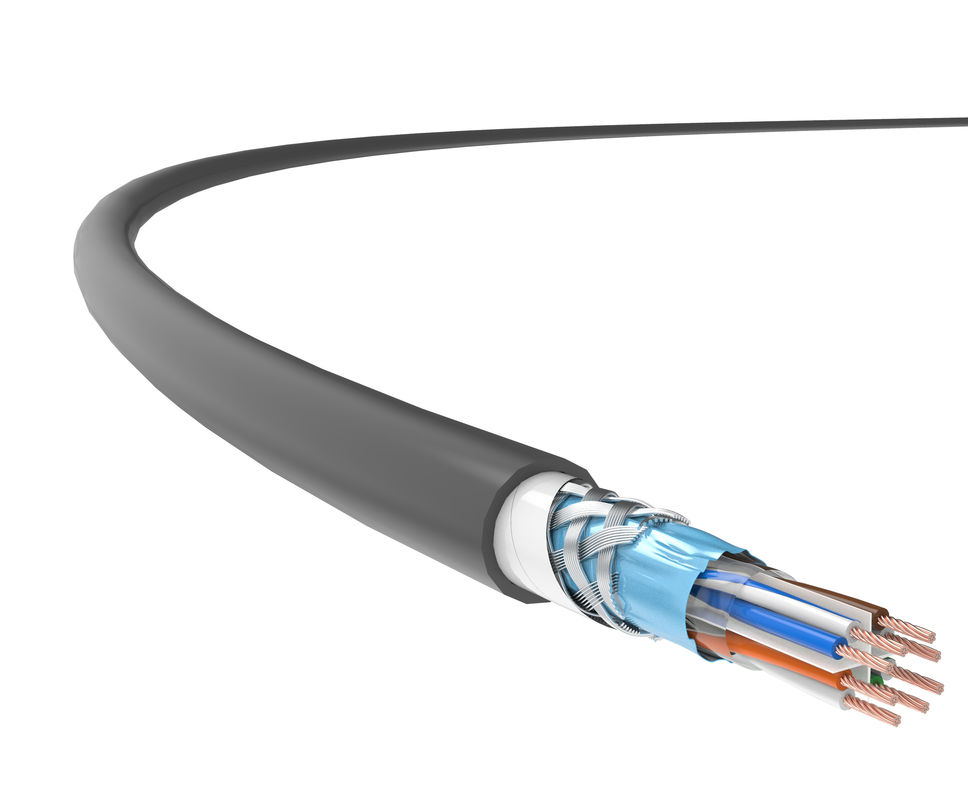

Outdoor Tactical Cat6 Cable Bare Copper TPU Jacket 23AWG

Product Details

Place of Origin: China

Brand Name: TC

Certification: UL, RoSH, REACH, CE

Model Number: FTP-51-6-4P-T1

Payment & Shipping Terms

Minimum Order Quantity: 50 Boxes

Price: Negotiable

Packaging Details: Seaworthy Packing

Payment Terms: Western Union, T/T, L/C, MoneyGram

Get Best Price
High Light:

Outdoor Tactical Cat6 Cable

,

Bare Copper Tactical Cat6 Cable

,

TPU Jacket Bulk Network Cable

Type:
Cat 6 F/UTP
Outer Jacket:
TPU, Black
Insulation:
HDPE
Cross Spline:
PE
Conductor Material:
99.99% BC
Conductor OD:
23 AWG
Drain Wire:
Yes
Rip Cord:
No
Type:
Cat 6 F/UTP
Outer Jacket:
TPU, Black
Insulation:
HDPE
Cross Spline:
PE
Conductor Material:
99.99% BC
Conductor OD:
23 AWG
Drain Wire:
Yes
Rip Cord:
No
Outdoor Tactical Cat6 Cable Bare Copper TPU Jacket 23AWG

Cat 6 Cable, Cat 6 Network Cable, Cat 6 Ethernet Cable, TPU sheath, outdoor application



It can be applied in harsh field environments or indoor industrial environments where cable properties, such as abrasion, corrosion, oil/weather/ozone resistance, pulling force, high and low temperature, must be good.



Product Features


TC's Cat 6, 23 AWG, 4-pair shielded tactical cable adopts cross-type spline and overall aluminum foil shield, optimized to greatly enhance technical indicators, including Attenuation, NEXT, and ANEXT. Its unique TPU jacket ensures highly efficient data transmission even exposed to the field, industrial environment and other harsh environments.



Its performance exceeds all the parameters specified in IEC 61156-5 standards.



And the cable is especially useful in some harsh electromagnetic environments where high-speed and stable cable transmission is required.



At the same time, it acts on the requirements for structured cabling in new buildings.





Application Standards


ISO/IEC 11801





Technical Details



  Transmission Performance Cat.6 TC
Frequency (MHz) 4 31.25 62.5 100 200 250 350
IL Attenuation (dB/100M) 3.4 9.5 13.5 17.2 24.8 28 31
Near End Crosstalk Attenuation (NEXT, dB) 94 77.4 69.5 72.9 65.3 61.9 62.4
NEXT Power and PS NEXT (dB) 73.9 69.9 61.7 64.3 59.6 61 58.6
Equal Level Far-end Crosstalk Attenuation (ACR-F, dB) 108.9 99.2 90.7 107.2 82.8 77.2 74.6
ACR-F Power and PS ACR-F (dB) 94.4 91.2 87.9 90.5 77 73.8 70.5
Return Loss (RL, dB) 37.3 37.5 37.3 31.6 23.4 24.2 22.8


Notes: The values reflected in the table above are typically measured, in accordance with IEC 61156-9.





  Electrical Properties
DC resistance (20℃ )
93.8Ω/km
Earth Capacity ≦ 5.6 nF/100m (@1kHz)
100MHz Characteristic Impedance
100Ω±15Ω
Transverse Conversion Loss (TCL)
≥ 55dB-20×lgf (100-2000MHz)
Delay Skew 25ns/100m





  Mechanical Properties
Minimum Bend Radius (dynamic)
32mm
Minimum Bend Radius (static)
60mm
Maximum Installation Tension
150N
Anti-Extrusion Capacity 1000N/10cm





  Flammability (TPU)
TPU Flame Resistance GB/T 18380.12 (IEC 60332-1-2)
