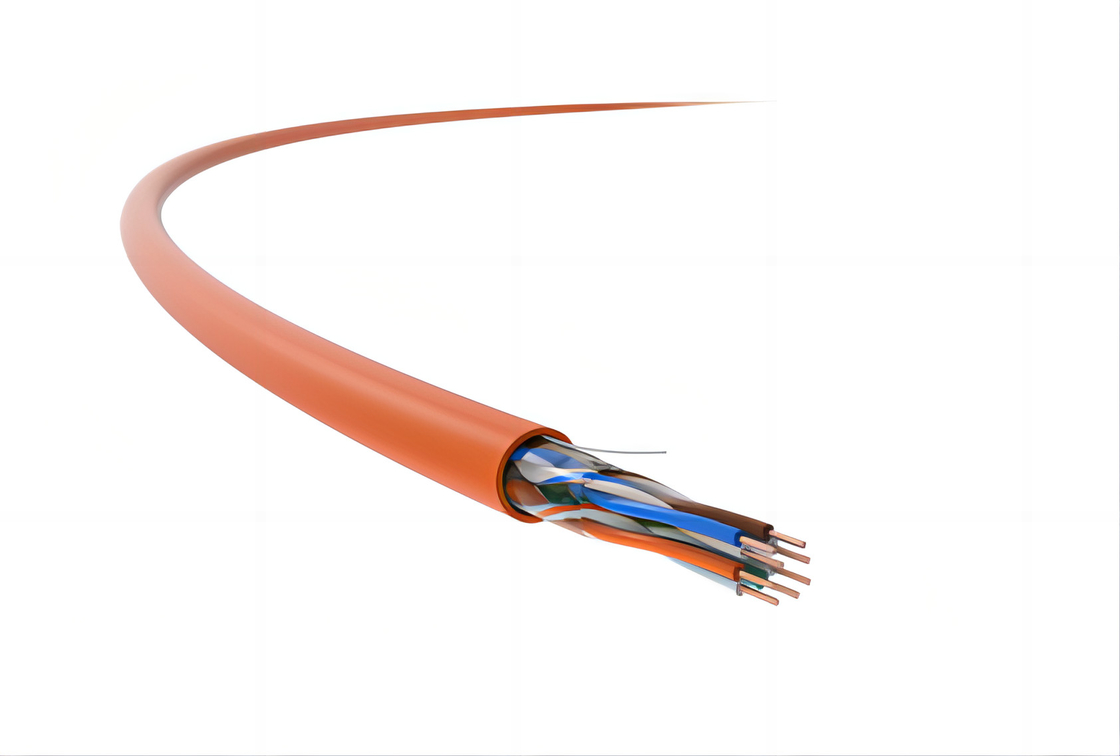

1Gbps, Unshielded Twisted Pair Cable for Security AWG24, Indoor

Product Details

Place of Origin: China

Brand Name: TC

Certification: UL, RoSH, REACH, CE

Model Number: UTP-15-5E-4P-AF

Payment & Shipping Terms

Minimum Order Quantity: 50 Boxes

Price: Negotiable

Packaging Details: Seaworthy Packing

Payment Terms: Western Union, T/T, L/C, MoneyGram

Get Best Price
Highlight:
Type:
U/UTP
Cross Spline:
PVC
Insulation:
HDPE
Conductor Material:
99.99% BC
Conductor OD:
24 AWG
Drain Wire:
No
Rip Cord:
Yes
Standards:
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2
Type:
U/UTP
Cross Spline:
PVC
Insulation:
HDPE
Conductor Material:
99.99% BC
Conductor OD:
24 AWG
Drain Wire:
No
Rip Cord:
Yes
Standards:
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2
1Gbps, Unshielded Twisted Pair Cable for Security AWG24, Indoor

UTP Cat 6 Cable, Anti-Rodent Cable, Rat-Proof Cat 6 Cable, Rodent Resistant Cable, 24 AWG Application



It can be applied in horizontal cabling, as the portion of a telecommunications cabling system that extends from the work area telecommunications outlet to the patch panels in the distribution room, and in residential cabling that extends from the user telecommunications outlet to the patch panels.



Product Features


TC's Cat 6, 24 AWG, 4-pair, unshielded indoor cable adopts cross-type spline, with outer jacket in special rodent resistant material, optimized to greatly enhance technical indicators, including Attenuation and NEXT, which exceed the parameters specified in GB/T 18015.5 (IEC 61156-5) standards.



At the same time, it acts on the requirements for high transmission in data center, and structured cabling in new buildings.





Application Standards


TIA/EIA568-C.2



1Gbps, Unshielded Twisted Pair Cable for  Security AWG24, Indoor 0

Technical Details



  Transmission Performance Cat.5E TC
Frequency (MHz) 4 10 20 31.25 62.5 100 150
IL Attenuation (dB/100M) 3.8 6.1 11.0 15.8 17.9 20.0 23.6
Near End Crosstalk Attenuation (NEXT, dB) 80.0 77.0 61.1 58.2 62.0 66.3 47.7
NEXT Power and PS NEXT (dB) 68.8 60.3 52.9 50.5 46.9 41.9 40.1
Equal Level Far-end Crosstalk Attenuation (ACR-F, dB) 82.2 72.7 76.3 75.7 69.6 71.3 68.7
ACR-F Power and PS ACR-F (dB) 68.7 64.2 69.5 69.2 66.5 61.0 56.3
Return Loss (RL, dB) 46.0 66.6 37.5 41.5 36.9 32.2 28.9



Notes: The values reflected in the table above are typically measured, in accordance with IEC 61156-9.



  Physical Specifications
Conductor Size (nominal value)
4×2×0.48 (AWG24)
Outer Diameter of Cable (nominal
value)
5.0mm
Weight (305m, with package,
nominal value)
9kg





  Electrical Properties
DC resistance (20℃ )
100Ω/km
Earth Capacity
≦ 5.6 nF/100m (@1kHz)
100MHz Characteristic Impedance
100Ω±15Ω
Transverse Conversion Loss (TCL)
≥ 50dB-10×lgf (4-100MHz)
Delay Skew
None required
NVP
69%
Power Over Ethernet (POE) Enhanced Power Over Ethernet under IEEE 802.3at





  Mechanical Properties
Minimum Bend Radius (dynamic)
20mm
Minimum Bend Radius (static)
40mm
Maximum Installation Tension
100N
Anti-Extrusion Capacity
1000N/10cm
Anti-Shock Capacity
≥ 10 times
Installation Temperature Range
-0℃ ~+40℃
Working Temperature Range
-20℃ ~+75℃





  Flammability (Rodent Resistant LSZH)
Flame Resistance (of single wire) GB/T 18380.12 (IEC 60332-1-2)
Smoke Density GB/T 17651 (IEC 61034-1/-2)
Hazardous Halogen Gas GB/T 17650.1/.2 (IEC 60754-1/-2)
