Home > products > RJ45 Keystone Jack > FTP CAT6A Keystone Jack Toolless RJ45 Socket 50u Inch Gold Plated

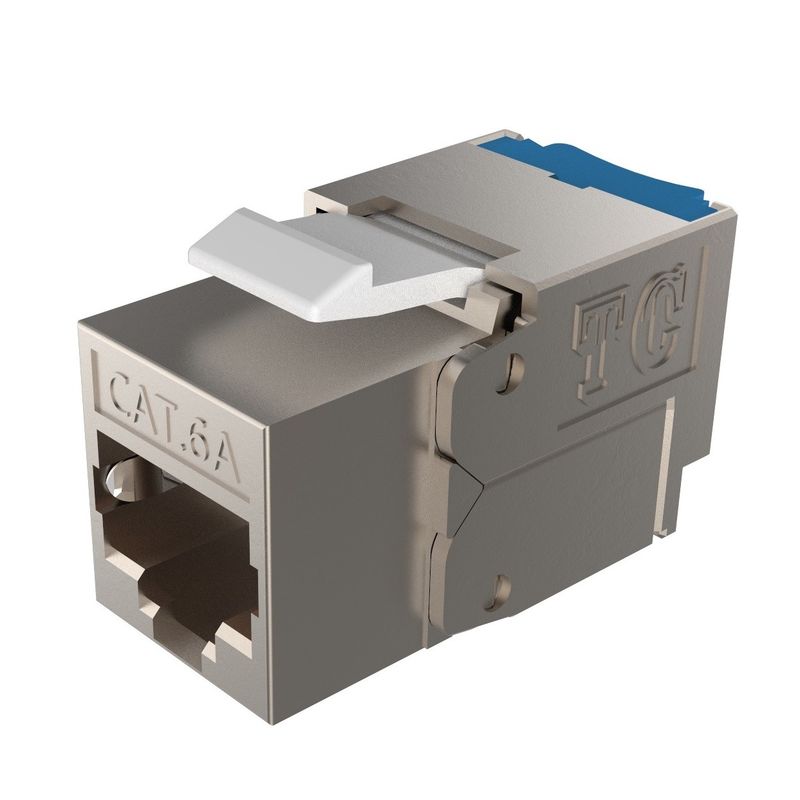

FTP CAT6A Keystone Jack Toolless RJ45 Socket 50u Inch Gold Plated

Product Details

Place of Origin: China

Brand Name: TC

Model Number: KJ-21-6A-B

Payment & Shipping Terms

Get Best Price
Highlight:

CAT6A Keystone Jack

,

toolless keystone jack

,

CAT6A FTP Keystone jack

Type:
CAT6A Shielded, Toolless
Housing Material:
High Quality Nickel Alloy Plating
Gold Plated Pin:
50u
Life Cycle:
≥ 750 Times
Size:
31mm (Length) × 17mm (Width) × 18.9mm
AWG:
0.5mm~0.65mm (AWG24~AWG22)
Type:
CAT6A Shielded, Toolless
Housing Material:
High Quality Nickel Alloy Plating
Gold Plated Pin:
50u
Life Cycle:
≥ 750 Times
Size:
31mm (Length) × 17mm (Width) × 18.9mm
AWG:
0.5mm~0.65mm (AWG24~AWG22)
FTP CAT6A Keystone Jack Toolless RJ45 Socket 50u Inch Gold Plated

RJ45 Keystone Jack, Keystone Module, Toolless Keystone Jack, Shielded Keystone Jack CAT6A, CAT6A Keystone Jack Application


Magic series, RJ45 Jack provides signal transmission in the telecommunications cabling, such as data, voice, audio and images. When integrated with patch panels, faceplates and other security components, it helps form the information inlet/outlet for management rooms, equipment rooms and work areas.



TC's Magic series Cat6/Cat6a shielded/ unshielded jack meets and even exceeds the International Standard IEC 60603-7 for the connectors. With bandwidth up to 350MHz (for Cat6 jack), and 600MHz (for Cat6a jack), terminated with shielded Cat6/Cat6a/Cat7/Cat7a and unshielded Cat6/Cat6a cables, it supports Class D/E/EA standard (for Cat6a jack) applications as well as Ethernet applications, such as 10G Base-T, 5G Base-T, 2.5G Base-T, 1G Base-T, 1G Base-TX, and 100 Base-T. It also supports enhanced Power Over Ethernet (POE+) under IEEE 802.3at.




Product Features



  • Features for shielded jack include high quality nickel-based die-cast alloys with a touch of metallic and a sense of beauty. Unshielded jack shares the same die-casting rear cover with the shielded one for improvement of ANEXT capability that meets all requirements in 10G Base-T, 5G Base-T, 2.5G Base-T applications.
  • The patent industry-leading structure has a small diameter of 31mm, designed for high density wiring which means easy deployment even in narrow groundings.
  • With a dog clutch attached firmly to the cable shield, the patent multicolor cable lock replaces the cable tie, compatible with 4.5 to 9mm copper cables of many different types.
  • Three-stage floating and sinking design helps the gold springs fully bounce back when accommodating different kinds of RJ series plugs, which ensures a more stable transmission performance.
  • The unique cross rib splitting structure guarantees minimum crosstalk among wire pairs and maximum network performance.





Application Standards


GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2





Technical Details



  Mechanical Properties
Size 31mm (Length) × 17mm (Width) × 18.9mm (Height, Key excluded)

Weight

(20pcs, with package)

Shielded: 480g, Unshielded: 350g
Applicability of Solid Single Wire 0.5mm (AWG24) ~0.65mm (AWG22)
Repeated Termination Ability ≥ 20 times, terminated with the same or larger AWG22, 23, 24 solid single wire
Applicability of Stranded Wire AWG26/7, repeated termination for one time
Suitable Insulation Diameter 0.7mm to 1.3mm (foamed 1.5mm)
Life cycle ≥ 750 times
Storage Temperature Range -40℃ to +70℃
Installation Temperature Range -10℃ to +60℃
Operation Temperature Range -20℃ to +60℃





  Electrical Properties
Dielectric Strength DC 1000V (AC 750V), no breakdown or flashover for 1 minute
High Frequency Performance IEC60603-7-4 (Cat.6 unshielded, 250MHz), IEC 60603-7-5 (Cat.6 shielded, 250MHz),
IEC 60603-7-41 (Cat.6A unshielded, 500MHz), IEC 60603-7-51 (Cat.6A shielded, 500MHz)
Power Over Ethernet (POE) Enhanced Power Over Ethernet under IEEE 802.3at
