Magic II Generation RJ45 Lockable Jumper Cable Cat.6A/Cat.6,Shielded/Unshielded

Product Details

Place of Origin: China

Brand Name: TC

Certification: GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2 etc.

Model Number: PC-21-*,PC-13-*

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Payment Terms: L/C, T/T, Western Union, MoneyGram

Get Best Price
Highlight:
Jumpers Type And Length:
Multi-strand Flexible Cable, Standard Length 0.5m To 20m, Customizable.
Insertion And Extraction Cycles:
≥ 750 Times
Storage Temperature:
-40℃ ~+70℃
Installation Temperature:
-10℃ ~+60℃
Operating Temperature:
-20℃ ~+60℃
Insulation Strength:
DC 1000V (AC 750V) Withstands No Breakdown And Arc Phenomena For 1 Minute
High-frequency Performance:
IEC 61935-2 Compliant, 100% Pass Jumpers Monotype Testing
Power Over Ethernet(POE):
Complies With IEEE 802.3at Enhanced Ethernet Power Supply
Jumpers Type And Length:
Multi-strand Flexible Cable, Standard Length 0.5m To 20m, Customizable.
Insertion And Extraction Cycles:
≥ 750 Times
Storage Temperature:
-40℃ ~+70℃
Installation Temperature:
-10℃ ~+60℃
Operating Temperature:
-20℃ ~+60℃
Insulation Strength:
DC 1000V (AC 750V) Withstands No Breakdown And Arc Phenomena For 1 Minute
High-frequency Performance:
IEC 61935-2 Compliant, 100% Pass Jumpers Monotype Testing
Power Over Ethernet(POE):
Complies With IEEE 802.3at Enhanced Ethernet Power Supply
Magic II Generation RJ45 Lockable Jumper Cable Cat.6A/Cat.6,Shielded/Unshielded

Magic II Generation RJ45 Lockable Jumper Cable Cat.6A/Cat.6,Shielded/Unshielded



Product Application
It is used for the transmission of data, voice, audio and video, image and other signals in the communication integrated wiring system of the building. Together with copper cables, modules and other components, it forms an integrated wiring information transmission channel, and connects the information entrance and exit with active equipment (switches, computers, etc.) . TC Magic Ⅱ generation RJ45 jumper with lock products include Category 6 and Category 6e copper cable jumpers. The performance fully meets and exceeds the copper cable jumper
monomer standard specified in IEC 61935-2, and the bandwidth reaches 350MHz(Cat. 6 jumper)/600MHz (Cat.6A jumper), with Cat.6/6A link, applicable to all applications supported by Class D, E and EA (requires Cat.6A jumper), including Ethernet applications , such as: 10GBase-T, 5GBase-T, 2.5GBase-T, 1GBase-T, 1GBase-TX, 100Base-T, etc. It can be used in IEEE 802.3at-compliant Power over Ethernet Plus applications (POE+).

Product Features
Magic II generation RJ45 lockable patch cords have been comprehensively upgraded from the first generation while retaining the highly praised front hard, rear soft composite design, effectively ensuring the bending radius of the patch cords. It solves the issues of "big nose" lock cores and long port insertion dimensions, making it suitable for panels and distribution frames with dust doors, featuring a compact design for high-density switch environments.
Multiple plug-and-play methods, suitable for various complex environments Magic II generation RJ45 lockable patch cords support two plug-and-play methods: the traditional manual press-and-release method, suitable for general structured cabling in data centers, and a key-locked mechanism for direct extraction, suitable for high-density applications. The key integrates the unlocking function for LC Uniboot lockable patch cords and fiber adapter ports.
Lockable structure, providing security, confidentiality, and convenience Data security design is achieved through optimized structural design, effectively preventing intrusion by blade-type tools, as well as thwarting unlocking attempts using tools like paper clips and tweezers. This prevents unauthorized personnel from easily disconnecting network equipment or related connections, ensuring uninterrupted information transmission and preventing the infiltration of malware. It enhances network equipment security and reduces the risk of information leakage.

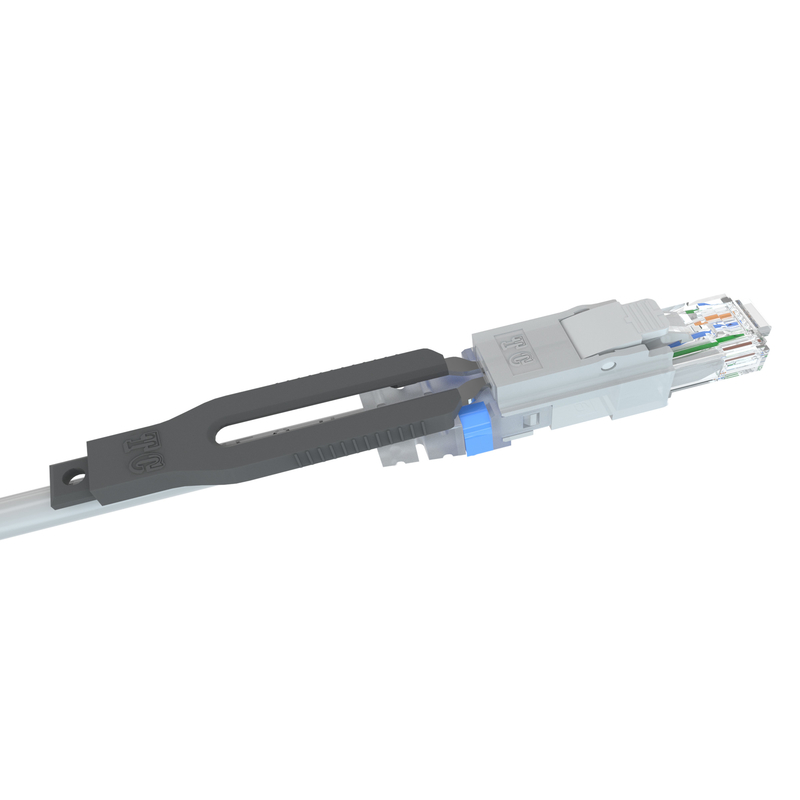

Patented detachable pull rod
It is both a rod and a key. The patented key with a rod can be used to easily insert and remove the jumper even in a high-density environment.
The color recognition feature ensures clear and distinct identification
The internally specially designed reverse tooth buckle can increase the stability of the cable after installation. All jumpers are equipped with easy-to-detach color rings, meeting the requirements for visual color identification.

Application Standards
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2 etc.

Mechanical performance
Jumpers Type and Length Multi-strand flexible cable, standard length 0.5m to 20m, customizable.
Insertion and Extraction Cycles ≥ 750 times
Storage Temperature -40℃ ~+70℃
Installation Temperature -10℃ ~+60℃
Operating Temperature -20℃ ~+60℃



Electrical performance
Insulation strength DC 1000V (AC 750V) withstands no breakdown and arc phenomena for 1 minute
High-frequency performance IEC 61935-2 compliant, 100% pass jumpers monotype testing
Power over Ethernet(POE) Complies with IEEE 802.3at Enhanced Ethernet Power Supply
