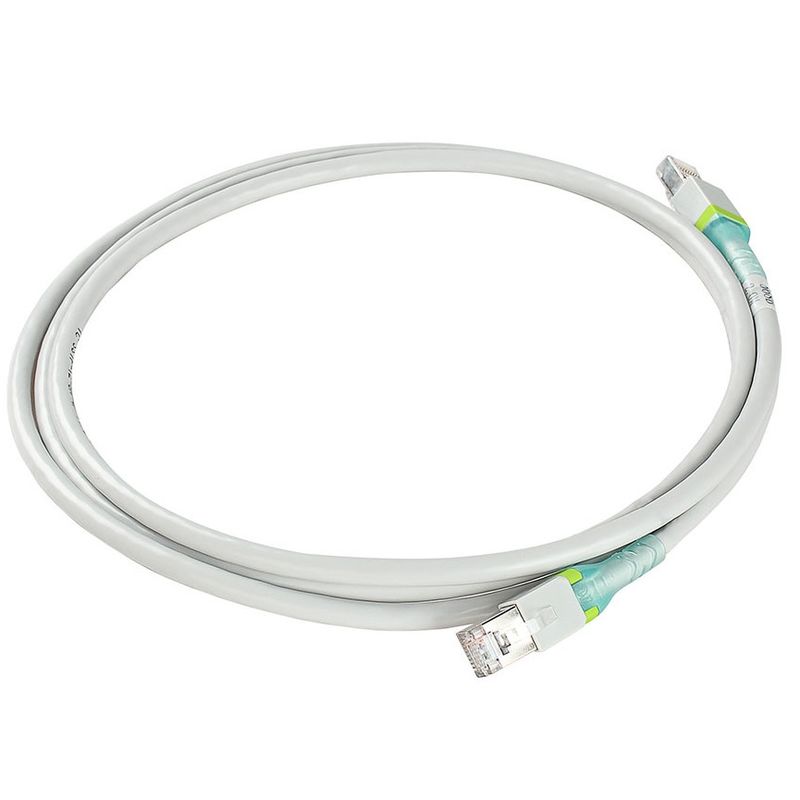

Network Patch Cord CAT6A FTP Rj45 Patch Cord BC 26AWG Stranded

Product Details

Place of Origin: China

Brand Name: TC

Model Number: PC-21-6A-10-T-B

Payment & Shipping Terms

Minimum Order Quantity: 200 pcs

Price: Negotiable

Packaging Details: Seaworthy Packing

Delivery Time: 30000 pcs/month

Payment Terms: Western Union, T/T, L/C, MoneyGram

Get Best Price
High Light:

IEC 11801 rj45 jumper cable

,

600MHz rj45 jumper cable

,

IEC 11801 ftp patch cord

Type:
CAT6A FTP
Length:
1m
Color:
Gray
Conductor:
7*0.16
No.of Conductors:
8
Conductor Material:
Bare Copper
Sheath:
PVC
Shape:
Round
Type:
CAT6A FTP
Length:
1m
Color:
Gray
Conductor:
7*0.16
No.of Conductors:
8
Conductor Material:
Bare Copper
Sheath:
PVC
Shape:
Round
Network Patch Cord CAT6A FTP Rj45 Patch Cord BC 26AWG Stranded

CAT6A Patch Cord, FTP, PVC, 1m RJ45 Patch Cord, 26AWG Stranded


Magic series, RJ45 Composite Patch Cord provides signal transmission in the telecommunications cabling, such as data, voice, audio and images. When integrated with copper cables and jacks, it helps form the transmission channel for the structured cabling system and connect the information inlet/outlet and active devices (switches, computers, etc.).



TC's Magic series composite patch cord can be categorized as standard one and ultrafine one, including but not limited to high-performance general patch cord, patch cord with pull rod, patch cord with lock, matched port lock.



The Cat6/Cat6a copper patch cord meets and even exceeds IEC 61935-2 standards. With bandwidth up to 350MHz (for Cat6 patch cord) and 600MHz (for Cat6a patch cord), coupled with Cat6/Cat6a links, it supports Class D/E/EA standard (for Cat6a patch cord) applications as well as the Ethernet applications, such as 10G Base-T, 5G Base-T, 2.5G Base-T, 1G Base-T, 1G Base-TX, and 100 Base-T. It also supports enhanced Power Over Ethernet (POE+) under IEEE 802.3at.




TC Patch Cord Features



  • Magic series composite patch cord invests PC & TPU molding technology in both outer housing and rear jacket. Hardness in front and softness at back ensure the minimum bend radius.
  • General patch cord houses RJ45 ports of different depths and its bending clip helps maintain and manage LAN cables.
  • The special interior is designed in a barbed structure for cable stability after installation.
  • All patch cords contain detachable color rings for port identification.




Application Standards


GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2





Technical Details



  Mechanical Properties
Type/Length of Patch Cord Stranded cable, standard length of 0.5m-20m, tailored product
Life Cycle ≥ 750 times
Storage Temperature Range -40℃ to +70℃
Installation Temperature Range -10℃ to +60℃
Working Temperature Range -20℃ to +60℃





  Electrical Properties
Dielectric Strength DC 1000V (AC 750V), no breakdown or flashover for 1 minute
High Frequency Performance IEC 61935-2, 100% pass in channel testing
Power Over Ethernet (POE) Enhanced Power Over Ethernet under IEEE 802.3at
