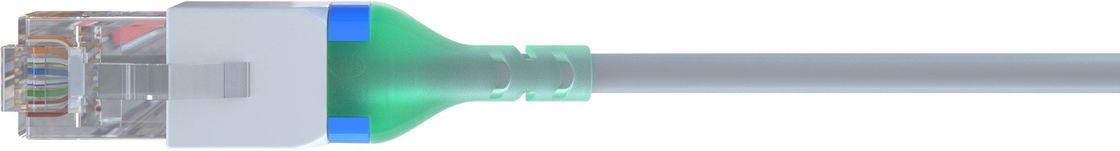

PVC 1m Cat6 Utp Patch Cord 28AWG 1m Cat6 Patch Cord

Product Details

Place of Origin: China

Brand Name: TC

Model Number: PC-13-6-10-T-B28

Payment & Shipping Terms

Minimum Order Quantity: 200 pcs

Price: Negotiable

Packaging Details: Seaworthy Packing

Delivery Time: 30000 pcs/month

Payment Terms: Western Union, T/T, L/C, MoneyGram

Get Best Price
Highlight:

PVC 1m cat6 utp patch cord

,

28AWG cat6 utp patch cord

,

PVC 1m cat6 patch cord

Type:
CAT6 UTP
Length:
1m
Color:
Gray
Conductor:
7*0.127
No.of Conductors:
8
Conductor Material:
Bare Copper
Sheath:
PVC
Shape:
Round
Type:
CAT6 UTP
Length:
1m
Color:
Gray
Conductor:
7*0.127
No.of Conductors:
8
Conductor Material:
Bare Copper
Sheath:
PVC
Shape:
Round
PVC 1m Cat6 Utp Patch Cord 28AWG 1m Cat6 Patch Cord

CAT6 Patch Cord, UTP, PVC, 28AWG Patch Cord Stranded , 1m RJ45 Patch Cord Applications


Magic series, RJ45 Composite Patch Cord provides signal transmission in the telecommunications cabling, such as data, voice, audio and images. When integrated with copper cables and jacks, it helps to form the transmission channel for the structured cabling system and connect the information inlet/outlet and active devices (switches, computers, etc.).



TC's Magic series composite patch cord can be categorized as standard one and ultrafine one, including but not limited to high-performance general patch cord, patch cord with pull rod, patch cord with lock, matched port lock.



The Cat6/Cat6a copper patch cord meets and even exceeds IEC 61935-2 standards. With bandwidth up to 350MHz (for Cat6 patch cord) and 600MHz (for Cat6a patch cord), coupled with Cat6/Cat6a links, it supports Class D/E/EA standard (for Cat6a patch cord) applications as well as the Ethernet applications, such as 10G Base-T, 5G Base-T, 2.5G Base-T, 1G Base-T, 1G Base-TX, and 100 Base-T. It also supports enhanced Power Over Ethernet (POE+) under IEEE 802.3at.




TC Patch Cord Features



  • Magic series composite patch cord invests PC & TPU molding technology in both outer housing and rear jacket. Hardness in front and softness at back ensure the minimum bend radius.
  • General patch cord houses RJ45 ports of different depths and its bending clip helps maintain and manage LAN cables.
  • Ultrafine patch cord with 28AWG soft cable features an ultrafine diameter which provides high space utilization and flexibility, greatly easing space pressure from cable managers and even the cabinets, and making it convenient to install and maintain. All ultrafine patch cords support a variety of specifications which means the pull rod and the port lock are all available if needed.
  • The special interior is designed in a barbed structure for cable stability after installation.
  • All patch cords contain detachable color rings for port identification.




Application Standards


GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2





Technical Details



  Mechanical Properties
Type/Length of Patch Cord Stranded cable, standard length of 0.5m-20m, tailored product
Life Cycle ≥ 750 times
Storage Temperature Range -40℃ to +70℃
Installation Temperature Range -10℃ to +60℃
Working Temperature Range -20℃ to +60℃





  Electrical Properties
Dielectric Strength DC 1000V (AC 750V), no breakdown or flashover for 1 minute
High Frequency Performance IEC 61935-2, 100% pass in channel testing
Power Over Ethernet (POE) Enhanced Power Over Ethernet under IEEE 802.3at





Order Information
Model Description Jacket Material Color Color Ring Package
PC-21-6A-20-T-B RJ45 General Patch Cord, Cat6a, Shielded, PVC, Gray, 2m PVC Gray RAL7035 Blue 1 per pack
PC-21-6A-20-TL-B RJ45 General Patch Cord, Cat6a, Shielded, LSZH, Gray, 2m LSZH Gray RAL7035 Blue 1 per pack
PC-21-6A-20-Y-B RJ45 Patch Cord with Pull Rod, Cat6a, Shielded, PVC, Gray, 2m PVC Gray RAL7035 Blue 1 per pack
PC-21-6A-20-YL-B RJ45 Patch Cord with Pull Rod, Cat6a, Shielded, LSZH, Gray, 2m LSZH Gray RAL7035 Blue 1 per pack
PC-21-6A-20-S-B RJ45 Patch Cord with Lock, Cat6a, Shielded, PVC, Gray, 2m PVC Gray RAL7035 Blue 1 per pack
PC-21-6A-20-SL-B RJ45 Patch Cord with Lock, Cat6a, Shielded, LSZH, Gray, 2m LSZH Gray RAL7035 Blue 1 per pack
PC-13-6-20-T-B RJ45 General Patch Cord, Cat6, Unshielded, PVC, Gray, 2m PVC Gray RAL7035 Blue 1 per pack
PC-13-6-20-TL-B RJ45 General Patch Cord, Cat6, Unshielded, LSZH, Gray, 2m LSZH Gray RAL7035 Blue 1 per pack
PC-13-6-20-T-B28 RJ45 Ultrafine Patch Cord, Cat6, Unshielded, PVC, Gray, 2m PVC Gray RAL7035 Blue 1 per pack
PC-13-6-20-Y-B28 RJ45 Ultrafine Patch Cord with Pull Rod, Cat6, Unshielded, PVC, Gray, PVC Gray RAL7035 Blue 1 per pack
PC-13-6-20-S-B28 RJ45 Ultrafine Patch Cord with Lock, Cat6, Unshielded, PVC, Gray, 2M PVC Gray RAL7035 Blue 1 per pack
PC309-L Port Lock PC Gray - 50 per pack
PC309-K Unlock Key PC Blue - 10 per pack
PC309-R-R Magic series, Color Ring for Patch Cord PC   Red 50 per pack
PC309-R-Y Magic series, Color Ring for Patch Cord PC   Yellow 50 per pack
PC309-R-N Magic series, Color Ring for Patch Cord PC   Green 50 per pack
