Product Details
Place of Origin: China
Brand Name: TC
Certification: IEC 60793, ISO/IEC11801
Model Number: GJFJV-*,GJFJZY-*
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Application: |
Indoor |
Fiber Type: |
Singlemode/Multimode |
Fiber No.: |
Customized |
Jacket Material: |
PVC/LSZH |
Application: |
Indoor |
Fiber Type: |
Singlemode/Multimode |
Fiber No.: |
Customized |
Jacket Material: |
PVC/LSZH |

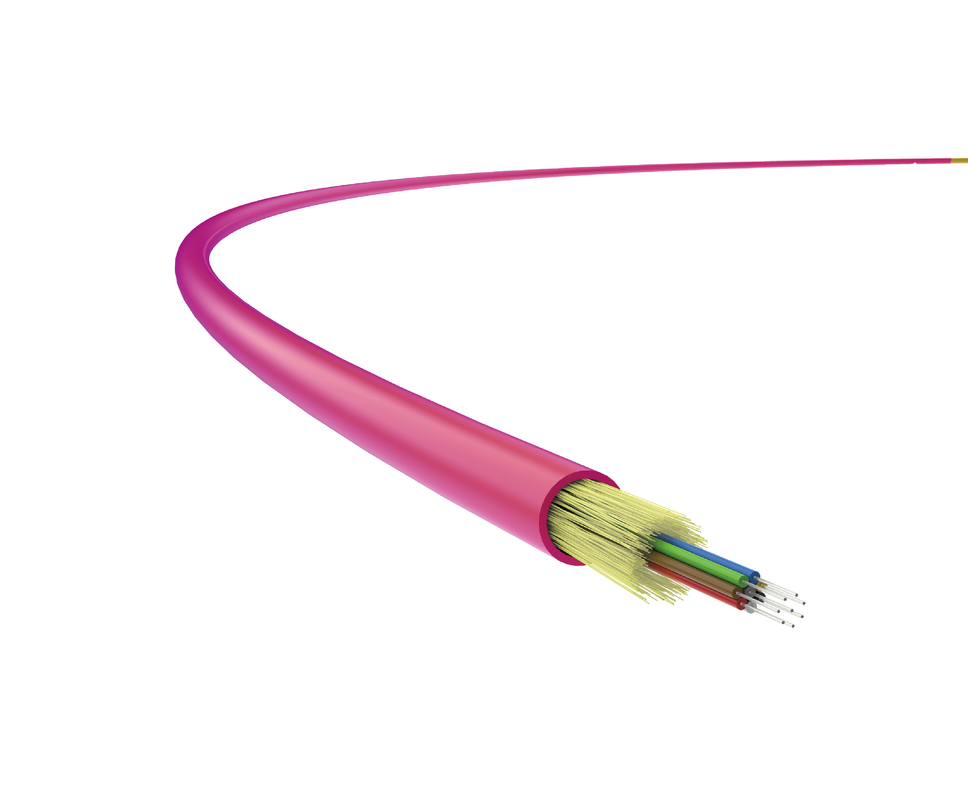

DistributionOptical Fiber Tight Buffered Cable Indoor PVC/LSZH
| Color Code |
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Blue | Orange | Green | Brown | Slate | White | Red | Black | Yellow | Violet | Rose | Aqua |
| Flame Resistance |
Flammability standard for single wire | GB/T 18380.12- 2022 |
Flammability standard for bunched wires | GB/T 18380.35-2022 |
| Jacket: Peel off 50mm-long cable, place the empty jacket horizontally and burn for 4-5 seconds, using alcohol lamp; after the fire source is taken away, it extinguishes less than 2 seconds; Aramid yarn: it is burnt into powder and extinguishes right after the fire source is taken away | ||||
| Optical Properties | ||||||
| Type of Optical Fiber | Attenuation | Injection Bandwidth (OFL) | Effective Modal Bandwidth | 10 Ethernet Link Length SX | Min. Bend Radius (mm) | |
| 1310nm/1550nm | 850/1300nm | 850nm | 850nm | |||
| Typical Value (dB/km) | Max. Value (dB/km) | MHz·km | MHz·km | |||
| SM 9/125 | 0.36/0.22 | 0.4/0.3 | / | / | / | 16 |
| 850nm/1300nm | ||||||
| Typical Value (dB/km) | Max. Value (dB/km) | |||||
| MM62.5/125 OM1 | 3.0/1.0 | 3.5/1.5 | ≥ 200/500 | / | / | 30 |
| MM50/125 OM2 | 3.0/1.0 | 3.5/1.5 | ≥ 500/500 | / | ≥ 150 | 30 |
| MM50/125 OM3 | 3.0/1.0 | 3.5/1.5 | ≥ 1500/500 | ≥ 2000 | ≥ 300 | 30 |
| MM50/125 OM4 | 3.0/1.0 | 3.5/1.5 | ≥ 3500/500 | ≥ 4700 | ≥ 550 | 30 |
