Electromagnetic Induction High-Speed Tracing Series

Product Details

Place of Origin: China

Brand Name: TC

Certification: GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568.2-D etc

Model Number: JS*

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Payment Terms: L/C, T/T, Western Union, MoneyGram

Get Best Price
Highlight:
Factory:
Yes
Idc Wire Range:
22~24 AWG
Termination Method:
Toolless
Application:
Tracing
Manufacturer:
Yes
Benifit:
Toolless
Factory:
Yes
Idc Wire Range:
22~24 AWG
Termination Method:
Toolless
Application:
Tracing
Manufacturer:
Yes
Benifit:
Toolless
Electromagnetic Induction High-Speed Tracing Series

Electromagnetic Induction High-Speed Tracing Series



Product Application
With the continuous development of communication technology and 5G in recent years in our country, the demand for high-quality networks has been increasing.
Consequently, the maintenance workload of corresponding network base stations and data centers has become increasingly burdensome. Currently, during operation and maintenance processes, the search for jumper cables often requires significant human and material resources. The traditional pulse audio mode used in line finders requires network disconnection, has low sensitivity, and is inefficient.
Therefore, Tiancheng's high-speed line locating solution has emerged. The product utilizes electromagnetic induction and photoelectric line tracing, providing a simple and efficient method that can improve cable locating efficiency by over 80%.
It is suitable for traditional data centers, structured cabling projects, and other applications.

Product Features
  • Innovative Wire Tracing Method
            Using electromagnetic induction principles, wireless coils and LEDs are installed at both ends of the jumper wire. The wire tracer        charges the induction coils to illuminate the LEDs at both ends of the jumper wire.
            The transmitting coil generates a magnetic field with a certain frequency alternating current.
            The receiving end generates a certain amount of current in the coil through electromagnetic induction, transferring energy from the transmitting end to the receiving end and lighting up the LED at the receiving end.
  • Hands-Free Wire Tracing Mode
             The wire tracer is equipped with a built-in magnet, allowing it to be attached to metal cabinets.
            Wire tracing is performed using an external coil, which can be securely fixed to the jumper wire using a card slot structure.
             This hands-free feature enables technicians to move freely to distant locations to trace target jumper wires.
  • Support for Conventional Copper Wire Tracing
            By connecting one end to an audio transmission device (such as Fluke or other testing equipment), the wire tracer can use its audio detection function to detect audio signals on the other end of the cable and locate the corresponding wire.
  • Illumination Feature
            The wire tracer incorporates LED lighting.

Application Standards
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568.2-D etc.





High-speed Copper Jumper Cable Tracing
Number of insertions and withdrawals ≥ 750 times
Insulation strength DC 1000V, no breakdown for 1 minute
Insulation resistance ≥ 500MΩ (+20℃ , DC 100V)



High-speed Fiber Optic Jumper Cable Tracing
Insertion loss ≤ 0.3dB
Interchangeability ≤ 0.2dB
Minimum bending radius Dynamic: 20 times the diameter of the optical cable Static: 10 times the diameter of the optical cable

Electromagnetic Induction High-Speed Tracing Series 0

Electromagnetic Induction High-Speed Tracing Series 1

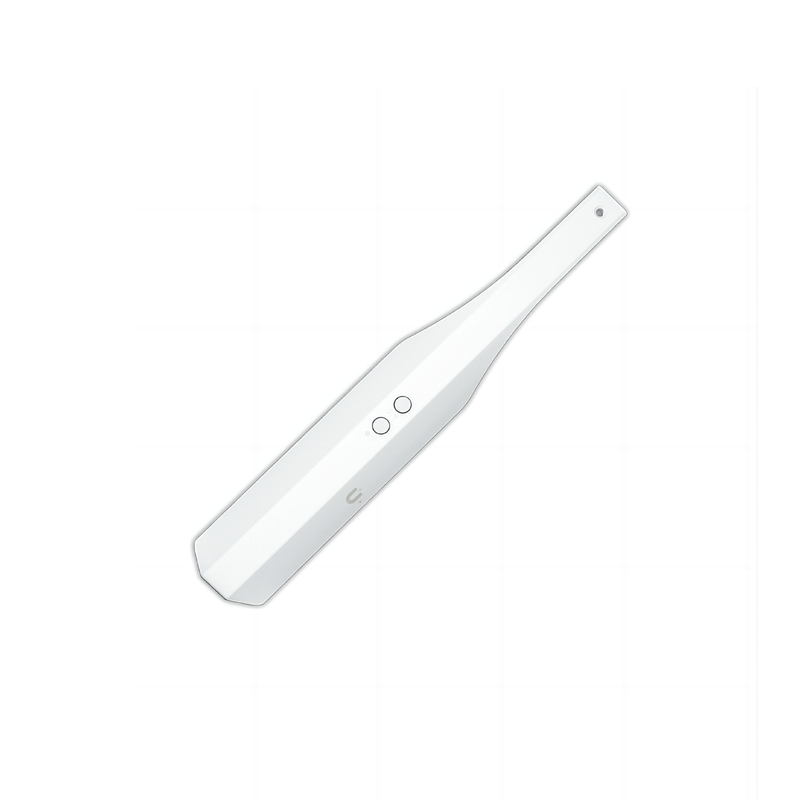

High-speed cable locator and dedicated jumpercable
Electromagnetic Induction High-Speed Tracing Series 2
Supported audio cable tracing method
Electromagnetic Induction High-Speed Tracing Series 3
External coil cable tracing with the cable locator
Electromagnetic Induction High-Speed Tracing Series 4
Free your hands, singleperson cable tracing
